7.15. Forecasting¶
On this example we present a full forecasting workflow for the Sioux Falls example model.
## Imports
from uuid import uuid4
from tempfile import gettempdir
from os.path import join
from aequilibrae.utils.create_example import create_example
import logging
import sys
We create the example project inside our temp folder
fldr = join(gettempdir(), uuid4().hex)
project = create_example(fldr)
logger = project.logger
# We the project open, we can tell the logger to direct all messages to the terminal as well
stdout_handler = logging.StreamHandler(sys.stdout)
formatter = logging.Formatter("%(asctime)s;%(levelname)s ; %(message)s")
stdout_handler.setFormatter(formatter)
logger.addHandler(stdout_handler)
## Traffic assignment with skimming
from aequilibrae.paths import TrafficAssignment, TrafficClass
# we build all graphs
project.network.build_graphs()
# We get warnings that several fields in the project are filled with NaNs. Which is true, but we won't use those fields
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,471;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,508;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,544;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,581;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,617;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:354: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "id"] = np.arange(df.shape[0])
2022-11-29 07:35:45,654;WARNING ; Field(s) name, lanes has(ve) at least one NaN value. Check your computations
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:371: FutureWarning: In a future version, `df.iloc[:, i] = newvals` will attempt to set the values inplace instead of always setting a new array. To retain the old behavior, use either `df[df.columns[i]] = newvals` or, if columns are non-unique, `df.isetitem(i, newvals)`
df.loc[:, "direction"] = df.direction.values.astype(np.int8)
# we grab the graph for cars
graph = project.network.graphs["c"]
# let's say we want to minimize free_flow_time
graph.set_graph("free_flow_time")
# And will skim time and distance while we are at it
graph.set_skimming(["free_flow_time", "distance"])
# And we will allow paths to be compute going through other centroids/centroid connectors
# required for the Sioux Falls network, as all nodes are centroids
graph.set_blocked_centroid_flows(False)
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:445: FutureWarning: The default value of numeric_only in DataFrameGroupBy.sum is deprecated. In a future version, numeric_only will default to False. Either specify numeric_only or select only columns which should be valid for the function.
df = self.__graph_groupby.sum()[[cost_field]].reset_index()
2022-11-29 07:35:45,682;WARNING ; Cost field with wrong type. Converting to float64
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:479: FutureWarning: The default value of numeric_only in DataFrameGroupBy.sum is deprecated. In a future version, numeric_only will default to False. Either specify numeric_only or select only columns which should be valid for the function.
df = self.__graph_groupby.sum()[skim_fields].reset_index()
# We get the demand matrix directly from the project record
# so let's inspect what we have in the project
proj_matrices = project.matrices
proj_matrices.list()
# Let's get it in this better way
demand = proj_matrices.get_matrix("demand_omx")
demand.computational_view(["matrix"])
assig = TrafficAssignment()
# Creates the assignment class
assigclass = TrafficClass(name="car", graph=graph, matrix=demand)
# The first thing to do is to add at list of traffic classes to be assigned
assig.add_class(assigclass)
# We set these parameters only after adding one class to the assignment
assig.set_vdf("BPR") # This is not case-sensitive # Then we set the volume delay function
assig.set_vdf_parameters({"alpha": "b", "beta": "power"}) # And its parameters
assig.set_capacity_field("capacity") # The capacity and free flow travel times as they exist in the graph
assig.set_time_field("free_flow_time")
# And the algorithm we want to use to assign
assig.set_algorithm("bfw")
# since I haven't checked the parameters file, let's make sure convergence criteria is good
assig.max_iter = 1000
assig.rgap_target = 0.001
assig.execute() # we then execute the assignment
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:445: FutureWarning: The default value of numeric_only in DataFrameGroupBy.sum is deprecated. In a future version, numeric_only will default to False. Either specify numeric_only or select only columns which should be valid for the function.
df = self.__graph_groupby.sum()[[cost_field]].reset_index()
2022-11-29 07:35:46,005;WARNING ; Cost field with wrong type. Converting to float64
2022-11-29 07:35:46,005;INFO ; bfw Assignment STATS
2022-11-29 07:35:46,005;INFO ; Iteration, RelativeGap, stepsize
2022-11-29 07:35:46,010;INFO ; 1,inf,1.0
2022-11-29 07:35:46,020;INFO ; 2,0.8485503636986156,0.3649733931991619
2022-11-29 07:35:46,031;INFO ; 3,0.38139263975960314,0.22983569243524993
2022-11-29 07:35:46,040;INFO ; 4,0.19621280093105328,0.18591303407405754
2022-11-29 07:35:46,050;INFO ; 5,0.09069069564886302,0.709081525570193
2022-11-29 07:35:46,060;INFO ; 6,0.20600049841796414,0.12290139708465252
2022-11-29 07:35:46,069;INFO ; 7,0.0671057020569446,0.3863865464644097
2022-11-29 07:35:46,080;INFO ; 8,0.10307514522959232,0.10930550628245674
2022-11-29 07:35:46,090;INFO ; 9,0.042221488560558955,0.24878058909094228
2022-11-29 07:35:46,099;INFO ; 10,0.05926436280283587,0.15904812211073494
2022-11-29 07:35:46,107;INFO ; 11,0.034539501887818985,0.5180973982981508
2022-11-29 07:35:46,111;INFO ; 12,0.059426522740212366,0.101971242325629
2022-11-29 07:35:46,115;INFO ; 13,0.023239892828420625,0.1780595247621586
2022-11-29 07:35:46,119;INFO ; 14,0.01787378174233466,0.9787872892076548
2022-11-29 07:35:46,122;INFO ; 15,0.04966137112489825,0.08320656230754342
2022-11-29 07:35:46,126;INFO ; 16,0.021382882927382725,0.11517403372477297
2022-11-29 07:35:46,130;INFO ; 17,0.01314154305058098,0.1064036961470442
2022-11-29 07:35:46,133;INFO ; 18,0.009902228306191804,0.10710395852809111
2022-11-29 07:35:46,137;INFO ; 19,0.008834657124558089,0.252467895277828
2022-11-29 07:35:46,141;INFO ; 20,0.010371041656588888,0.6727839455896467
2022-11-29 07:35:46,145;INFO ; 21,0.011090096024277666,0.07468062458005388
2022-11-29 07:35:46,148;INFO ; 22,0.006512685864200749,0.12485018976276105
2022-11-29 07:35:46,152;INFO ; 23,0.00523888532832478,0.06316016036308214
2022-11-29 07:35:46,155;INFO ; 24,0.003949527733957799,0.09717892036982514
2022-11-29 07:35:46,159;INFO ; 25,0.003282221717998643,0.15775902884958926
2022-11-29 07:35:46,163;INFO ; 26,0.0057928324189390375,0.4524765555189632
2022-11-29 07:35:46,167;INFO ; 27,0.006682358714677215,0.7851865434128832
2022-11-29 07:35:46,170;INFO ; 28,0.00599261954468699,0.039098102583274626
2022-11-29 07:35:46,174;INFO ; 29,0.004031364721003652,0.04253017715977122
2022-11-29 07:35:46,178;INFO ; 30,0.00276965205224939,0.02251286694569934
2022-11-29 07:35:46,182;INFO ; 31,0.002484645375580033,0.045801689794576335
2022-11-29 07:35:46,185;INFO ; 32,0.0016385526291291498,0.034295834113305265
2022-11-29 07:35:46,189;INFO ; 33,0.0014956909894299761,0.035391999643557624
2022-11-29 07:35:46,193;INFO ; 34,0.0011355396506463338,0.053589857140533936
2022-11-29 07:35:46,197;INFO ; 35,0.0012151969842906466,0.04757129085244828
2022-11-29 07:35:46,200;INFO ; 36,0.0012393652042090905,0.06536474008117803
2022-11-29 07:35:46,204;INFO ; 37,0.0010684964499824193,0.1070395355360692
2022-11-29 07:35:46,208;INFO ; 38,0.0010899690746481111,0.09864062890245766
2022-11-29 07:35:46,211;INFO ; 39,0.0009886949061956609,0.06027624172548778
2022-11-29 07:35:46,212;INFO ; bfw Assignment finished. 39 iterations and 0.0009886949061956609 final gap
# Convergence report is easy to see
import pandas as pd
convergence_report = assig.report()
convergence_report.head()
volumes = assig.results()
volumes.head()
# We could export it to CSV or AequilibraE data, but let's put it directly into the results database
assig.save_results("base_year_assignment")
# And save the skims
assig.save_skims("base_year_assignment_skims", which_ones="all", format="omx")
2022-11-29 07:35:46,346;WARNING ; Matrix Record has been saved to the database
## Trip distribution
### Calibration
# We will calibrate synthetic gravity models using the skims for TIME that we just generated
import numpy as np
from aequilibrae.distribution import GravityCalibration
# Let's take another look at what we have in terms of matrices in the model
proj_matrices.list()
# We need the demand
demand = proj_matrices.get_matrix("demand_aem")
# And the skims
imped = proj_matrices.get_matrix("base_year_assignment_skims_car")
# We can check which matrix cores were created for our skims to decide which one to use
imped.names
# Where free_flow_time_final is actually the congested time for the last iteration
['distance_blended', 'distance_final', 'free_flow_time_blended', 'free_flow_time_final']
# But before using the data, let's get some impedance for the intrazonals
# Let's assume it is 75% of the closest zone
imped_core = "free_flow_time_final"
imped.computational_view([imped_core])
# If we run the code below more than once, we will be overwriting the diagonal values with non-sensical data
# so let's zero it first
np.fill_diagonal(imped.matrix_view, 0)
# We compute it with a little bit of NumPy magic
intrazonals = np.amin(imped.matrix_view, where=imped.matrix_view > 0, initial=imped.matrix_view.max(), axis=1)
intrazonals *= 0.75
# Then we fill in the impedance matrix
np.fill_diagonal(imped.matrix_view, intrazonals)
# Since we are working with an OMX file, we cannot overwrite a matrix on disk
# So we give a new name to save it
imped.save(names=["final_time_with_intrazonals"])
# This also updates these new matrices as those being used for computation
# As one can verify below
imped.view_names
['final_time_with_intrazonals']
# We set the matrices for being used in computation
demand.computational_view(["matrix"])
for function in ["power", "expo"]:
gc = GravityCalibration(matrix=demand, impedance=imped, function=function, nan_as_zero=True)
gc.calibrate()
model = gc.model
# we save the model
model.save(join(fldr, f"{function}_model.mod"))
# We can save the result of applying the model as well
# we can also save the calibration report
with open(join(fldr, f"{function}_convergence.log"), "w") as otp:
for r in gc.report:
otp.write(r + "\n")
## Forecast
# * We create a set of * 'future' * vectors using some random growth factors
# * We apply the model for inverse power, as the TFLD seems to be a better fit for the actual one
from aequilibrae.distribution import Ipf, GravityApplication, SyntheticGravityModel
from aequilibrae.matrix import AequilibraeData
import numpy as np
# We compute the vectors from our matrix
origins = np.sum(demand.matrix_view, axis=1)
destinations = np.sum(demand.matrix_view, axis=0)
args = {
"file_path": join(fldr, "synthetic_future_vector.aed"),
"entries": demand.zones,
"field_names": ["origins", "destinations"],
"data_types": [np.float64, np.float64],
"memory_mode": False,
}
vectors = AequilibraeData()
vectors.create_empty(**args)
vectors.index[:] = demand.index[:]
# Then grow them with some random growth between 0 and 10% - Plus balance them
vectors.origins[:] = origins * (1 + np.random.rand(vectors.entries) / 10)
vectors.destinations[:] = destinations * (1 + np.random.rand(vectors.entries) / 10)
vectors.destinations *= vectors.origins.sum() / vectors.destinations.sum()
# Impedance
imped = proj_matrices.get_matrix("base_year_assignment_skims_car")
imped.computational_view(["final_time_with_intrazonals"])
# If we wanted the main diagonal to not be considered...
# np.fill_diagonal(imped.matrix_view, np.nan)
for function in ["power", "expo"]:
model = SyntheticGravityModel()
model.load(join(fldr, f"{function}_model.mod"))
outmatrix = join(proj_matrices.fldr, f"demand_{function}_model.aem")
apply = GravityApplication()
args = {
"impedance": imped,
"rows": vectors,
"row_field": "origins",
"model": model,
"columns": vectors,
"column_field": "destinations",
"nan_as_zero": True,
}
gravity = GravityApplication(**args)
gravity.apply()
# We get the output matrix and save it to OMX too,
gravity.save_to_project(name=f"demand_{function}_modeled", file_name=f"demand_{function}_modeled.omx")
2022-11-29 07:35:47,329;WARNING ; Matrix Record has been saved to the database
2022-11-29 07:35:47,552;WARNING ; Matrix Record has been saved to the database
# We update the matrices table/records and verify that the new matrices are indeed there
proj_matrices.update_database()
proj_matrices.list()
### We now run IPF for the future vectors
args = {
"matrix": demand,
"rows": vectors,
"columns": vectors,
"column_field": "destinations",
"row_field": "origins",
"nan_as_zero": True,
}
ipf = Ipf(**args)
ipf.fit()
ipf.save_to_project(name="demand_ipfd", file_name="demand_ipfd.aem")
ipf.save_to_project(name="demand_ipfd_omx", file_name="demand_ipfd.omx")
2022-11-29 07:35:47,696;WARNING ; Matrix Record has been saved to the database
2022-11-29 07:35:47,793;WARNING ; Matrix Record has been saved to the database
<aequilibrae.project.data.matrix_record.MatrixRecord object at 0x7f7fd1a2cbb0>
proj_matrices.list()
## Future traffic assignment
from aequilibrae.paths import TrafficAssignment, TrafficClass
logger.info("\n\n\n TRAFFIC ASSIGNMENT FOR FUTURE YEAR")
2022-11-29 07:35:47,845;INFO ;
TRAFFIC ASSIGNMENT FOR FUTURE YEAR
demand = proj_matrices.get_matrix("demand_ipfd")
# let's see what is the core we ended up getting. It should be 'gravity'
demand.names
['matrix']
# Let's use the IPF matrix
demand.computational_view("matrix")
assig = TrafficAssignment()
# Creates the assignment class
assigclass = TrafficClass(name="car", graph=graph, matrix=demand)
# The first thing to do is to add at list of traffic classes to be assigned
assig.add_class(assigclass)
assig.set_vdf("BPR") # This is not case-sensitive # Then we set the volume delay function
assig.set_vdf_parameters({"alpha": "b", "beta": "power"}) # And its parameters
assig.set_capacity_field("capacity") # The capacity and free flow travel times as they exist in the graph
assig.set_time_field("free_flow_time")
# And the algorithm we want to use to assign
assig.set_algorithm("bfw")
# since I haven't checked the parameters file, let's make sure convergence criteria is good
assig.max_iter = 500
assig.rgap_target = 0.00001
assig.execute() # we then execute the assignment
/home/runner/work/aequilibrae/aequilibrae/aequilibrae/paths/graph.py:445: FutureWarning: The default value of numeric_only in DataFrameGroupBy.sum is deprecated. In a future version, numeric_only will default to False. Either specify numeric_only or select only columns which should be valid for the function.
df = self.__graph_groupby.sum()[[cost_field]].reset_index()
2022-11-29 07:35:48,161;WARNING ; Cost field with wrong type. Converting to float64

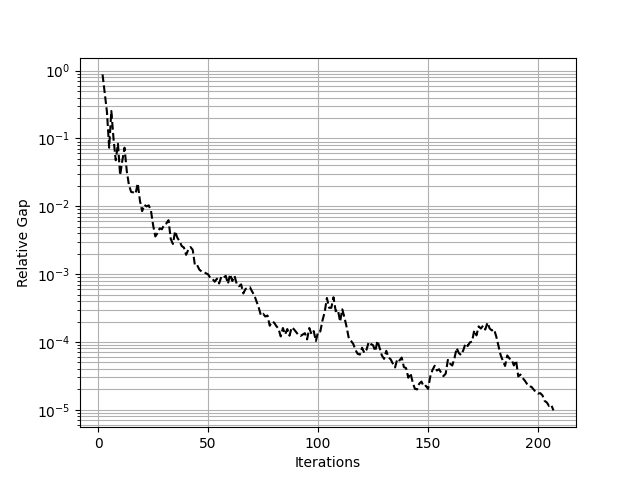

2022-11-29 07:35:48,162;INFO ; bfw Assignment STATS
2022-11-29 07:35:48,162;INFO ; Iteration, RelativeGap, stepsize
2022-11-29 07:35:48,169;INFO ; 1,inf,1.0
2022-11-29 07:35:48,180;INFO ; 2,0.8776038327947165,0.35194194800596224
2022-11-29 07:35:48,191;INFO ; 3,0.46258967612026347,0.18972760815724118
2022-11-29 07:35:48,199;INFO ; 4,0.24563915271016676,0.23462556986441843
2022-11-29 07:35:48,203;INFO ; 5,0.07289711677703088,0.9851363677496002
2022-11-29 07:35:48,208;INFO ; 6,0.2534950603426386,0.11811117417714245
2022-11-29 07:35:48,212;INFO ; 7,0.09786144704234179,0.14643197813926917
2022-11-29 07:35:48,216;INFO ; 8,0.04756352710660187,0.42838466394167934
2022-11-29 07:35:48,221;INFO ; 9,0.08360515652320759,0.10672419692532684
2022-11-29 07:35:48,224;INFO ; 10,0.028714574626005827,0.29611597755836144
2022-11-29 07:35:48,229;INFO ; 11,0.047169282097376315,0.9445534912617084
2022-11-29 07:35:48,233;INFO ; 12,0.07293746683610607,0.06518504262071433
2022-11-29 07:35:48,238;INFO ; 13,0.033350974561621546,0.08606333307299353
2022-11-29 07:35:48,242;INFO ; 14,0.020472338291126758,0.09817479898385979
2022-11-29 07:35:48,246;INFO ; 15,0.016253620188103963,0.13747824365693542
2022-11-29 07:35:48,251;INFO ; 16,0.015983432439245097,0.253858540863254
2022-11-29 07:35:48,255;INFO ; 17,0.015287099940930707,0.7327183354579772
2022-11-29 07:35:48,259;INFO ; 18,0.021645702405791327,0.0678687597580838
2022-11-29 07:35:48,264;INFO ; 19,0.012061826297201013,0.10020780999029054
2022-11-29 07:35:48,268;INFO ; 20,0.008460632935520858,0.09647217096919938
2022-11-29 07:35:48,272;INFO ; 21,0.010503373661221196,0.17833268414392842
2022-11-29 07:35:48,276;INFO ; 22,0.009940859217509026,0.246577113423649
2022-11-29 07:35:48,280;INFO ; 23,0.010297981112715848,0.6113648318204116
2022-11-29 07:35:48,284;INFO ; 24,0.00863823438083522,0.07874198226093891
2022-11-29 07:35:48,288;INFO ; 25,0.005240151241876607,0.03775729054234277
2022-11-29 07:35:48,292;INFO ; 26,0.003584860491281443,0.0711062143592039
2022-11-29 07:35:48,297;INFO ; 27,0.004019512572529646,0.11914416600173444
2022-11-29 07:35:48,301;INFO ; 28,0.004720935742142012,0.18035435139686343
2022-11-29 07:35:48,305;INFO ; 29,0.004583165222770935,0.29552829121812824
2022-11-29 07:35:48,309;INFO ; 30,0.0053674464252209,0.4939298053088995
2022-11-29 07:35:48,313;INFO ; 31,0.00557952084406729,0.7758423751739414
2022-11-29 07:35:48,317;INFO ; 32,0.006231460357159165,0.03289051663603803
2022-11-29 07:35:48,321;INFO ; 33,0.003300458686227179,0.035453424862890714
2022-11-29 07:35:48,325;INFO ; 34,0.0027799324897358696,0.05301054302592312
2022-11-29 07:35:48,330;INFO ; 35,0.004288188673638686,0.1242022629088111
2022-11-29 07:35:48,334;INFO ; 36,0.003433679398962094,0.18816133147740424
2022-11-29 07:35:48,338;INFO ; 37,0.003058272024156026,0.1535283724573769
2022-11-29 07:35:48,342;INFO ; 38,0.002589238831732664,0.17385645709400538
2022-11-29 07:35:48,346;INFO ; 39,0.0024613156544232057,0.21801192928100538
2022-11-29 07:35:48,351;INFO ; 40,0.0019219172856690691,0.2023089367400616
2022-11-29 07:35:48,360;INFO ; 41,0.0022959044191565485,0.5839046325399527
2022-11-29 07:35:48,364;INFO ; 42,0.0024995027368325796,0.9576107123639371
2022-11-29 07:35:48,368;INFO ; 43,0.002275332542700287,0.011247460567582246
2022-11-29 07:35:48,372;INFO ; 44,0.0013448027602777832,0.019751769861976184
2022-11-29 07:35:48,376;INFO ; 45,0.001359985013529228,0.039924537521524306
2022-11-29 07:35:48,380;INFO ; 46,0.0011648797407220364,0.041967674435139934
2022-11-29 07:35:48,384;INFO ; 47,0.0010939230665336264,0.05107267454988136
2022-11-29 07:35:48,388;INFO ; 48,0.001067754585098223,0.08932200635415237
2022-11-29 07:35:48,393;INFO ; 49,0.0010292927919723289,0.08477153084277053
2022-11-29 07:35:48,397;INFO ; 50,0.0009904668769673572,0.084435874374612
2022-11-29 07:35:48,401;INFO ; 51,0.0008746195106887933,0.05150245283632411
2022-11-29 07:35:48,405;INFO ; 52,0.0008480704121713653,0.04922268342008136
2022-11-29 07:35:48,409;INFO ; 53,0.0007721136133959812,0.05331652393504385
2022-11-29 07:35:48,417;INFO ; 54,0.0008553069741973425,0.07980020275648955
2022-11-29 07:35:48,427;INFO ; 55,0.0007276859594182507,0.12906250299287103
2022-11-29 07:35:48,438;INFO ; 56,0.0009138033989992133,0.18702824365855275
2022-11-29 07:35:48,448;INFO ; 57,0.0008823361173896108,0.12962633950098232
2022-11-29 07:35:48,458;INFO ; 58,0.0009428326602342531,0.20918923976571582
2022-11-29 07:35:48,468;INFO ; 59,0.0007206990225010789,0.3019238114918083
2022-11-29 07:35:48,472;INFO ; 60,0.0009924707332993137,0.6028993235085262
2022-11-29 07:35:48,482;INFO ; 61,0.000789434554676963,0.6557285418012307
2022-11-29 07:35:48,493;INFO ; 62,0.0009395442100285792,0.005467646156391774
2022-11-29 07:35:48,505;INFO ; 63,0.0007160912813084154,0.011757595712824047
2022-11-29 07:35:48,517;INFO ; 64,0.0006618628537000505,0.02020247770120896
2022-11-29 07:35:48,527;INFO ; 65,0.0007045404415201399,0.027078720583669127
2022-11-29 07:35:48,535;INFO ; 66,0.0005183446716617645,0.020415786369591633
2022-11-29 07:35:48,539;INFO ; 67,0.0006023408394383636,0.03019935564833873
2022-11-29 07:35:48,544;INFO ; 68,0.0006272435753628336,0.018244338743970214
2022-11-29 07:35:48,548;INFO ; 69,0.0006411882143816542,0.03278810827125554
2022-11-29 07:35:48,552;INFO ; 70,0.0005534708521347131,0.021945641720608068
2022-11-29 07:35:48,556;INFO ; 71,0.0004873658694529471,0.02249192092700199
2022-11-29 07:35:48,560;INFO ; 72,0.00039565793649800994,0.008182359238968403
2022-11-29 07:35:48,565;INFO ; 73,0.00032085775015311407,0.00807172064837359
2022-11-29 07:35:48,569;INFO ; 74,0.00024641986038898136,0.013621471401540025
2022-11-29 07:35:48,573;INFO ; 75,0.00026012133691338113,0.01064868458219174
2022-11-29 07:35:48,577;INFO ; 76,0.00023683662504139506,0.008124737925524575
2022-11-29 07:35:48,581;INFO ; 77,0.0002453416700624106,0.005859902021175667
2022-11-29 07:35:48,585;INFO ; 78,0.00017343014323460123,0.008917379284601911
2022-11-29 07:35:48,589;INFO ; 79,0.00019903717982824482,0.01560885458752535
2022-11-29 07:35:48,594;INFO ; 80,0.00019242567392314605,0.011542379401119733
2022-11-29 07:35:48,598;INFO ; 81,0.0001713866147538637,0.005900376182050248
2022-11-29 07:35:48,602;INFO ; 82,0.00015649240906291935,0.00666322176069894
2022-11-29 07:35:48,606;INFO ; 83,0.00012062926693792844,0.011598316013443632
2022-11-29 07:35:48,610;INFO ; 84,0.00016044812349446457,0.0060452220350742936
2022-11-29 07:35:48,617;INFO ; 85,0.00012903799866218957,0.009713197053435992
2022-11-29 07:35:48,621;INFO ; 86,0.00015486265853535596,0.010541890291283367
2022-11-29 07:35:48,625;INFO ; 87,0.00012362002871554417,0.007600235680948042
2022-11-29 07:35:48,630;INFO ; 88,0.0001640434228471744,0.015598336502141865
2022-11-29 07:35:48,634;INFO ; 89,0.00015378726457503534,0.012263339811168714
2022-11-29 07:35:48,638;INFO ; 90,0.00014010238454461907,0.006726686953864086
2022-11-29 07:35:48,647;INFO ; 91,0.00012719253615166656,0.01235282842506799
2022-11-29 07:35:48,657;INFO ; 92,0.00012242545045711977,0.009049305000954166
2022-11-29 07:35:48,668;INFO ; 93,0.00012848521822099494,0.00859083592134024
2022-11-29 07:35:48,680;INFO ; 94,0.00013451933336948324,0.006932784933944503
2022-11-29 07:35:48,691;INFO ; 95,0.00010889693825271467,0.01012252794220691
2022-11-29 07:35:48,699;INFO ; 96,0.00016048236655781775,0.018896373520703016
2022-11-29 07:35:48,704;INFO ; 97,0.0001296815412930233,0.029198441120118993
2022-11-29 07:35:48,708;INFO ; 98,0.00014433358803272566,0.011282638837988797
2022-11-29 07:35:48,712;INFO ; 99,0.0001031524356279424,0.010729220804896009
2022-11-29 07:35:48,716;INFO ; 100,0.0001422598467055488,0.019201282657683935
2022-11-29 07:35:48,720;INFO ; 101,0.00014243613529584112,0.029049557683735117
2022-11-29 07:35:48,725;INFO ; 102,0.00020784996340912182,0.05777842014766857
2022-11-29 07:35:48,729;INFO ; 103,0.0002757693156359683,0.14407324392888401
2022-11-29 07:35:48,733;INFO ; 104,0.00044458699389200035,0.20709650246664282
2022-11-29 07:35:48,737;INFO ; 105,0.00031851629415930236,0.16328447827212883
2022-11-29 07:35:48,742;INFO ; 106,0.0003181064517116748,0.5202884541460262
2022-11-29 07:35:48,746;INFO ; 107,0.0004556065136317193,0.0038914843883074727
2022-11-29 07:35:48,750;INFO ; 108,0.0002835871834126463,0.004087640764909962
2022-11-29 07:35:48,754;INFO ; 109,0.00029792737990242264,0.0045320111647514354
2022-11-29 07:35:48,759;INFO ; 110,0.00019903877943230438,0.00672288407622596
2022-11-29 07:35:48,763;INFO ; 111,0.0003024276690822406,0.00651606330602467
2022-11-29 07:35:48,767;INFO ; 112,0.00022731274372898939,0.0050031817788830715
2022-11-29 07:35:48,771;INFO ; 113,0.0001644602559321091,0.004215895768644252
2022-11-29 07:35:48,776;INFO ; 114,0.0001112078047127934,0.0013774455316302645
2022-11-29 07:35:48,780;INFO ; 115,0.00010332402879202421,0.0029071932973111815
2022-11-29 07:35:48,784;INFO ; 116,9.316569419590442e-05,0.002307737198104934
2022-11-29 07:35:48,789;INFO ; 117,7.634724039870011e-05,0.002024844972855024
2022-11-29 07:35:48,793;INFO ; 118,6.657310629065865e-05,0.002417305729260541
2022-11-29 07:35:48,797;INFO ; 119,6.506371884848914e-05,0.003729921695502827
2022-11-29 07:35:48,801;INFO ; 120,8.203510272733477e-05,0.003379802193619428
2022-11-29 07:35:48,805;INFO ; 121,6.898180585496858e-05,0.003606609097058515
2022-11-29 07:35:48,810;INFO ; 122,7.656761135574236e-05,0.007738653387266545
2022-11-29 07:35:48,814;INFO ; 123,9.943529623585701e-05,0.00678791307660858
2022-11-29 07:35:48,818;INFO ; 124,9.319734893457226e-05,0.005819799351805128
2022-11-29 07:35:48,822;INFO ; 125,8.916588662836365e-05,0.005228016209214343
2022-11-29 07:35:48,826;INFO ; 126,7.306585066194158e-05,0.006359744009738467
2022-11-29 07:35:48,831;INFO ; 127,0.00010385757388974851,0.011159394111624546
2022-11-29 07:35:48,835;INFO ; 128,8.05936736784518e-05,0.004771472133210507
2022-11-29 07:35:48,839;INFO ; 129,6.313851182388506e-05,0.002635236322476105
2022-11-29 07:35:48,843;INFO ; 130,5.6202010153868694e-05,0.0030179073796791516
2022-11-29 07:35:48,848;INFO ; 131,7.390136101437921e-05,0.007454688368877129
2022-11-29 07:35:48,852;INFO ; 132,5.9468603009545e-05,0.0021365839146009822
2022-11-29 07:35:48,856;INFO ; 133,5.52929805357748e-05,0.002196855161781862
2022-11-29 07:35:48,860;INFO ; 134,4.7780308700668604e-05,0.002096847857918493
2022-11-29 07:35:48,864;INFO ; 135,4.206933901679119e-05,0.002848811658417926
2022-11-29 07:35:48,868;INFO ; 136,5.625721258651054e-05,0.0046648448774161645
2022-11-29 07:35:48,872;INFO ; 137,5.320512911290679e-05,0.004567246239900218
2022-11-29 07:35:48,876;INFO ; 138,5.885812150721258e-05,0.004723475730022019
2022-11-29 07:35:48,880;INFO ; 139,4.258603688532726e-05,0.00469878781849139
2022-11-29 07:35:48,884;INFO ; 140,4.11809922868848e-05,0.001784712093096128
2022-11-29 07:35:48,889;INFO ; 141,2.966601747486545e-05,0.0018412274315540874
2022-11-29 07:35:48,893;INFO ; 142,3.4714596346865274e-05,0.0016398337842771051
2022-11-29 07:35:48,897;INFO ; 143,2.5353294239528754e-05,0.0007450587562479493
2022-11-29 07:35:48,901;INFO ; 144,2.039943087154869e-05,0.00026014344115989676
2022-11-29 07:35:48,905;INFO ; 145,1.994478346092747e-05,0.000724298856271267
2022-11-29 07:35:48,910;INFO ; 146,2.432116825352451e-05,0.0011389606493152427
2022-11-29 07:35:48,914;INFO ; 147,2.6007148675285818e-05,0.001133399367395307
2022-11-29 07:35:48,918;INFO ; 148,2.2052676368912567e-05,0.000877006244270951
2022-11-29 07:35:48,922;INFO ; 149,2.254951084511648e-05,0.0008194368339853549
2022-11-29 07:35:48,927;INFO ; 150,2.0287339517394753e-05,0.00187682800762765
2022-11-29 07:35:48,931;INFO ; 151,3.084708780104293e-05,0.0027981574484691758
2022-11-29 07:35:48,935;INFO ; 152,3.862103815228662e-05,0.004759943897566942
2022-11-29 07:35:48,939;INFO ; 153,4.4525156547539056e-05,0.005462807512163046
2022-11-29 07:35:48,943;INFO ; 154,3.788062330154353e-05,0.00443544486586971
2022-11-29 07:35:48,947;INFO ; 155,3.95777051306987e-05,0.004123223703249317
2022-11-29 07:35:48,951;INFO ; 156,3.495269226010886e-05,0.0042772832219027885
2022-11-29 07:35:48,955;INFO ; 157,3.1324734909741874e-05,0.004008660384606147
2022-11-29 07:35:48,960;INFO ; 158,3.398798957116159e-05,0.005816001778981821
2022-11-29 07:35:48,964;INFO ; 159,5.4360841228543735e-05,0.014525030228944
2022-11-29 07:35:48,968;INFO ; 160,4.785800380726318e-05,0.009336112309065597
2022-11-29 07:35:48,972;INFO ; 161,4.492219809380456e-05,0.010598819837264796
2022-11-29 07:35:48,977;INFO ; 162,5.7627044229195375e-05,0.029632981729059003
2022-11-29 07:35:48,981;INFO ; 163,8.120998132209187e-05,0.03841230444186879
2022-11-29 07:35:48,985;INFO ; 164,6.838827108190308e-05,0.025224029546498678
2022-11-29 07:35:48,989;INFO ; 165,6.410576872617294e-05,0.04079341149196225
2022-11-29 07:35:48,993;INFO ; 166,7.531469140452778e-05,0.03160048332314263
2022-11-29 07:35:48,997;INFO ; 167,9.454772262280899e-05,0.040379243475403385
2022-11-29 07:35:49,001;INFO ; 168,8.701404295462617e-05,0.03926131482529542
2022-11-29 07:35:49,005;INFO ; 169,9.833759771471985e-05,0.08174550592096679
2022-11-29 07:35:49,010;INFO ; 170,0.000101323285595152,0.08456975552741584
2022-11-29 07:35:49,014;INFO ; 171,0.00014858575384954267,0.14298559902605884
2022-11-29 07:35:49,018;INFO ; 172,0.00012492442130868043,0.19303263966784495
2022-11-29 07:35:49,022;INFO ; 173,0.00016932701292574935,0.2793387809139169
2022-11-29 07:35:49,026;INFO ; 174,0.00015742964467871989,0.3447108811846395
2022-11-29 07:35:49,030;INFO ; 175,0.00017358873326840673,0.5750829478358404
2022-11-29 07:35:49,034;INFO ; 176,0.00015226957040572161,0.8406421943144119
2022-11-29 07:35:49,039;INFO ; 177,0.00019260503632706645,0.0013249352494975658
2022-11-29 07:35:49,043;INFO ; 178,0.00015779248828345812,0.002602338675854627
2022-11-29 07:35:49,047;INFO ; 179,0.00014780762697808974,0.0021433136611779843
2022-11-29 07:35:49,051;INFO ; 180,0.00015305754475749826,0.0038915723292606967
2022-11-29 07:35:49,055;INFO ; 181,0.00012010600558306043,0.00247658064528874
2022-11-29 07:35:49,060;INFO ; 182,8.740452831852235e-05,0.0024521084033431594
2022-11-29 07:35:49,064;INFO ; 183,6.373248638426458e-05,0.0016891481091052144
2022-11-29 07:35:49,068;INFO ; 184,5.266680803789396e-05,0.0018353118475978147
2022-11-29 07:35:49,072;INFO ; 185,4.423668500818259e-05,0.0012562860381017395
2022-11-29 07:35:49,076;INFO ; 186,6.314903077624798e-05,0.002719341434138318
2022-11-29 07:35:49,080;INFO ; 187,5.6857006678658685e-05,0.002509782722968163
2022-11-29 07:35:49,084;INFO ; 188,5.5059448298824037e-05,0.0013461404689348276
2022-11-29 07:35:49,088;INFO ; 189,4.503328435251625e-05,0.0019826930322422416
2022-11-29 07:35:49,093;INFO ; 190,5.339145018522264e-05,0.0012837876408107766
2022-11-29 07:35:49,097;INFO ; 191,3.098724233809522e-05,0.0013107154287811615
2022-11-29 07:35:49,101;INFO ; 192,3.308008885332814e-05,0.0014103613336822226
2022-11-29 07:35:49,105;INFO ; 193,2.9350376864812637e-05,0.0015815276349007788
2022-11-29 07:35:49,110;INFO ; 194,2.6863077254417907e-05,0.0008375109454096235
2022-11-29 07:35:49,114;INFO ; 195,2.3968823327062422e-05,0.0010372694413473933
2022-11-29 07:35:49,118;INFO ; 196,2.2030877132808532e-05,0.0009241234687421242
2022-11-29 07:35:49,126;INFO ; 197,2.182604329942839e-05,0.0014462633099375218
2022-11-29 07:35:49,145;INFO ; 198,1.986409185137624e-05,0.0008913446970811066
2022-11-29 07:35:49,149;INFO ; 199,1.8217962008541884e-05,0.0014276957237979605
2022-11-29 07:35:49,153;INFO ; 200,1.7320212223703726e-05,0.0009792504798560502
2022-11-29 07:35:49,157;INFO ; 201,1.7582823969485302e-05,0.0014757677732895687
2022-11-29 07:35:49,161;INFO ; 202,1.6307169942381932e-05,0.001535176062875367
2022-11-29 07:35:49,165;INFO ; 203,1.3496040872766539e-05,0.001066969748420267
2022-11-29 07:35:49,169;INFO ; 204,1.280385029757512e-05,0.0009248912927135832
2022-11-29 07:35:49,173;INFO ; 205,1.133917717110072e-05,0.0011638065539680905
2022-11-29 07:35:49,177;INFO ; 206,1.1812052292740414e-05,0.0011654451276714984
2022-11-29 07:35:49,181;INFO ; 207,9.78726947556976e-06,0.0013099074935429143
2022-11-29 07:35:49,182;INFO ; bfw Assignment finished. 207 iterations and 9.78726947556976e-06 final gap
# We could export it to CSV or AequilibraE data, but let's put it directly into the results database
assig.save_results("future_year_assignment")
# And save the skims
assig.save_skims("future_year_assignment_skims", which_ones="all", format="omx")
2022-11-29 07:35:49,299;WARNING ; Matrix Record has been saved to the database
We can also plot convergence
import matplotlib.pyplot as plt
df = assig.report()
x = df.iteration.values
y = df.rgap.values
fig = plt.figure()
ax = fig.add_subplot(111)
plt.plot(x, y, "k--")
plt.yscale("log")
plt.grid(True, which="both")
plt.xlabel(r"Iterations")
plt.ylabel(r"Relative Gap")
plt.show()
Close the project
project.close()
Total running time of the script: ( 0 minutes 4.600 seconds)
