7.5. Editing network geometry: Splitting link

In this example we split a link right in the middle, while keeping all fields in the database equal. Distance is proportionally computed automatically in the database

## Imports
from uuid import uuid4
from tempfile import gettempdir
from os.path import join
from aequilibrae.utils.create_example import create_example
from shapely.ops import substring
import matplotlib.pyplot as plt

# We create the example project inside our temp folder
fldr = join(gettempdir(), uuid4().hex)

project = create_example(fldr)

We will split link 37 right in the middle Let’s get the link and check its length

links = project.network.links
all_nodes = project.network.nodes

link = links.get(37)
print(link.distance)

6010.108655014215

The idea is basically to copy a link and allocate the appropriate geometries to split the geometry we use Shapely’s substring

new_link = links.copy_link(37)

first_geometry = substring(link.geometry, 0, 0.5, normalized=True)
second_geometry = substring(link.geometry, 0.5, 1, normalized=True)

link.geometry = first_geometry
new_link.geometry = second_geometry
links.save()

The link objects in memory still don’t have their ID fields updated, so we refresh them

links.refresh()
link = links.get(37)
new_link = links.get(new_link.link_id)
print(link.distance, new_link.distance)

3005.040184141035 3005.0684894898027

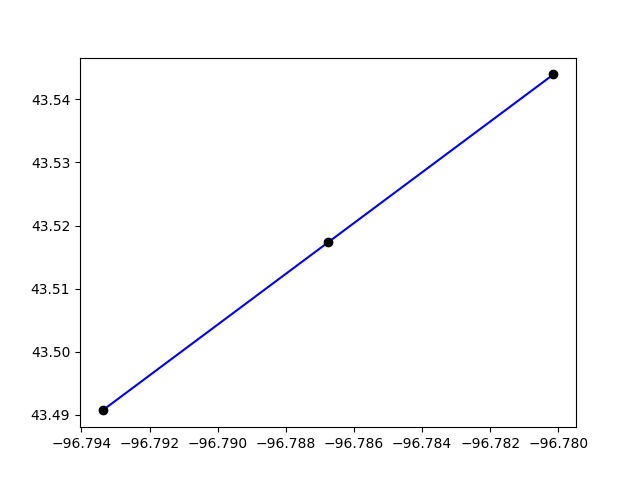

We can plot the two links only

plt.clf()
plt.plot(*link.geometry.xy, color="blue")
plt.plot(*new_link.geometry.xy, color="blue")

for node in [link.a_node, link.b_node, new_link.b_node]:
    geo = all_nodes.get(node).geometry
    plt.plot(*geo.xy, "ro", color="black")
plt.show()

/home/runner/work/aequilibrae/aequilibrae/docs/source/examples/plot_splitting_link.py:59: UserWarning: color is redundantly defined by the 'color' keyword argument and the fmt string "ro" (-> color='r'). The keyword argument will take precedence.
  plt.plot(*geo.xy, "ro", color="black")

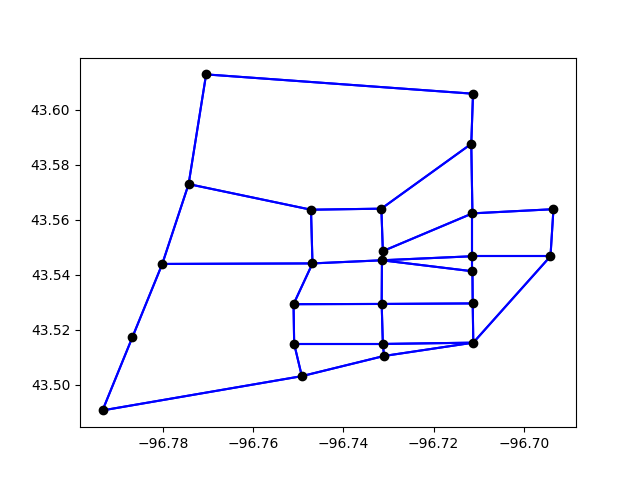

Or we plot the entire network

plt.clf()
curr = project.conn.cursor()
curr.execute("Select link_id from links;")

for lid in curr.fetchall():
    geo = links.get(lid[0]).geometry
    plt.plot(*geo.xy, color="blue")

all_nodes = project.network.nodes
curr = project.conn.cursor()
curr.execute("Select node_id from nodes;")

for nid in curr.fetchall():
    geo = all_nodes.get(nid[0]).geometry
    plt.plot(*geo.xy, "ro", color="black")

plt.show()

/home/runner/work/aequilibrae/aequilibrae/docs/source/examples/plot_splitting_link.py:78: UserWarning: color is redundantly defined by the 'color' keyword argument and the fmt string "ro" (-> color='r'). The keyword argument will take precedence.
  plt.plot(*geo.xy, "ro", color="black")

project.close()
