Editing network geometry: Splitting link

In this example, we split a link right in the middle, while keeping all fields in the database equal. Distance is proportionally computed automatically in the database.

References

• Link layer changes and expected behavior

See also

Several functions, methods, classes and modules are used in this example:

• aequilibrae.project.network.Links()

# Imports
from uuid import uuid4
from tempfile import gettempdir
from os.path import join
from aequilibrae.utils.create_example import create_example
from shapely.ops import substring
import matplotlib.pyplot as plt

# We create the example project inside our temp folder
fldr = join(gettempdir(), uuid4().hex)

project = create_example(fldr)

We will split link 37 right in the middle. Let’s get the link and check its length.

links = project.network.links
all_nodes = project.network.nodes

link = links.get(37)
print(link.distance)

6010.108655014215

The idea is basically to copy a link and allocate the appropriate geometries to split the geometry we use Shapely’s substring.

new_link = links.copy_link(37)

first_geometry = substring(link.geometry, 0, 0.5, normalized=True)
second_geometry = substring(link.geometry, 0.5, 1, normalized=True)

link.geometry = first_geometry
new_link.geometry = second_geometry
links.save()

The link objects in memory still don’t have their ID fields updated, so we refresh them.

links.refresh()

link = links.get(37)
new_link = links.get(new_link.link_id)
print(link.distance, new_link.distance)

3005.040184141035 3005.0684894898027

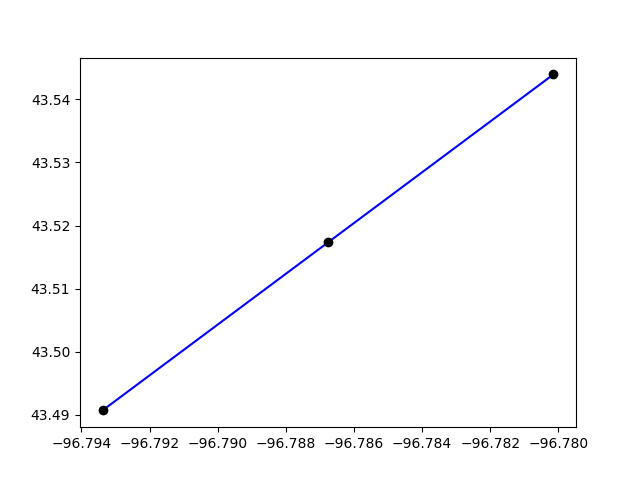

# We can plot the two links only
plt.clf()
plt.plot(*link.geometry.xy, color="blue")
plt.plot(*new_link.geometry.xy, color="blue")

for node in [link.a_node, link.b_node, new_link.b_node]:
    geo = all_nodes.get(node).geometry
    plt.plot(*geo.xy, "o", color="black")
plt.show()

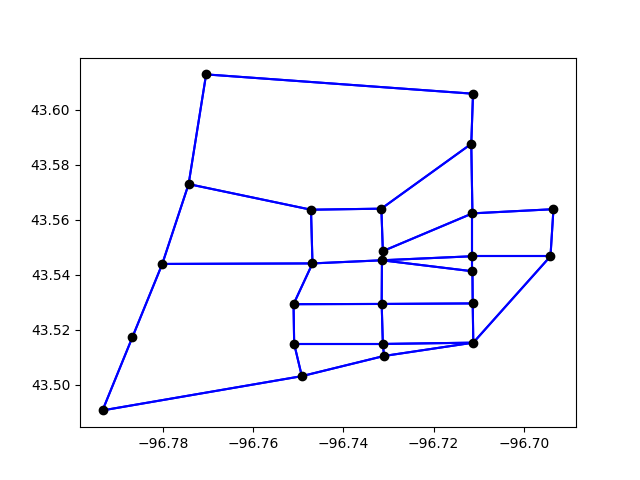

# Or we plot the entire network
plt.clf()
curr = project.conn.cursor()
curr.execute("Select link_id from links;")

for lid in curr.fetchall():
    geo = links.get(lid[0]).geometry
    plt.plot(*geo.xy, color="blue")

all_nodes = project.network.nodes
curr = project.conn.cursor()
curr.execute("Select node_id from nodes;")

for nid in curr.fetchall():
    geo = all_nodes.get(nid[0]).geometry
    plt.plot(*geo.xy, "o", color="black")

plt.show()

project.close()
