Processing Tools

Some of AequilibraE’s plugin functionalities are also available in a processing plugin. The processing plugin is automatically installed with QAequilibraE and allows you to perform several tasks, such as creating project from links, exporting matrices, and much more, as a batch process. To use the processing plugin, you don’t have to directly open the AequilibraE project, nor have the widget open, although it is mandatory to have AequilibraE installed.

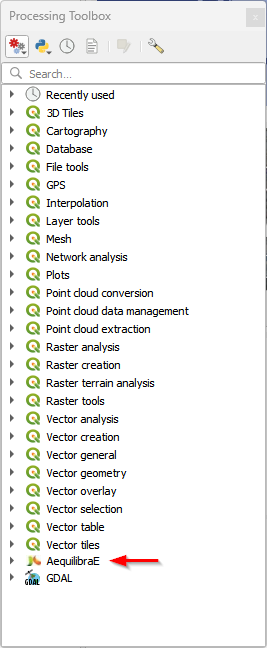

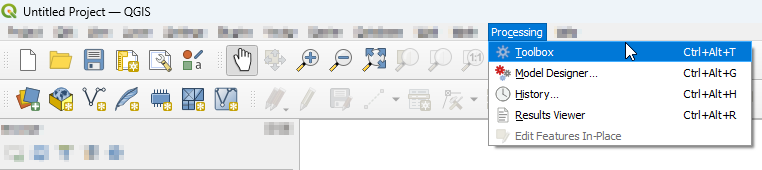

To find AequilibraE’s processing plugin, click on the Processing panel and select Toolbox. You can also use the available QGIS shortcut to open the Toolbox window.

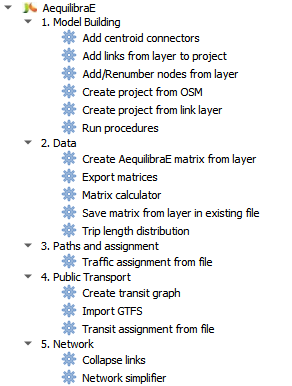

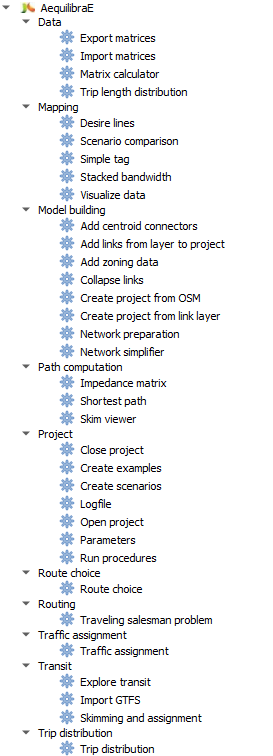

At the bottom of the window, you’ll find the AequilibraE logo and the available functions. The functions are divided into groups, following the same logic as the AequilibraE widget menu. Notice that not all AequilibraE functionalities are available for processing, and not all processing tools exist at the main AequilibraE menu.

In the following subsections, we’ll go over all functionalities.

Model Building

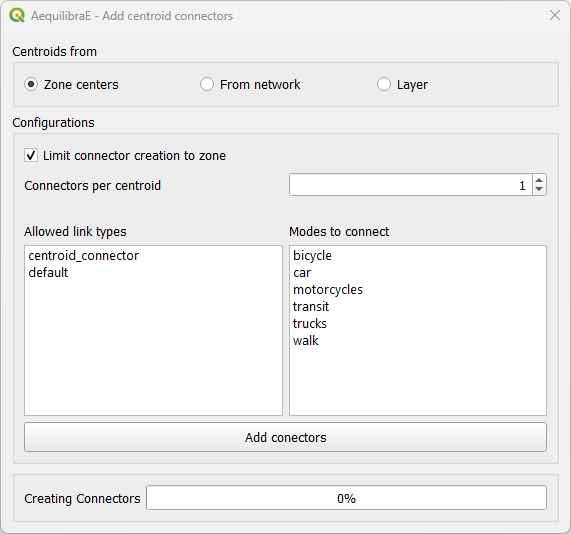

Add centroid connectors

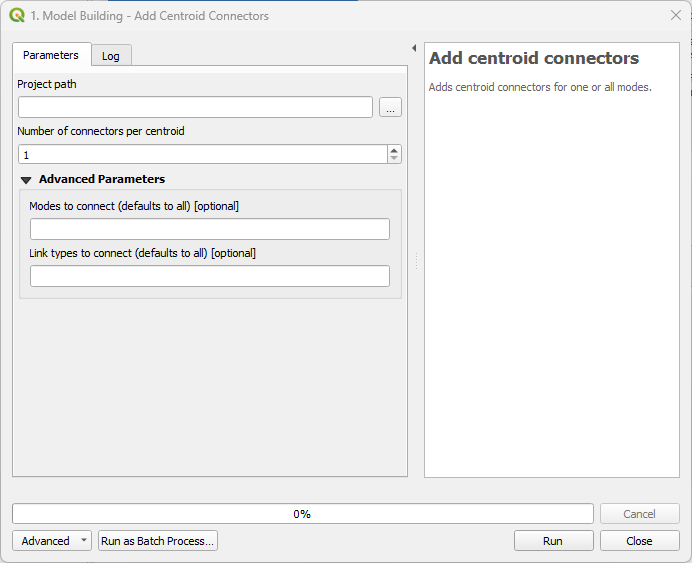

AequilibraE’s processing tool can add centroid connectors to a project’s network. All you need to do is specify the number of centroids and the project folder. You can also choose the modes and the link types you want to connect, otherwise the default configuration uses all modes and link types.

Add links from layer to project

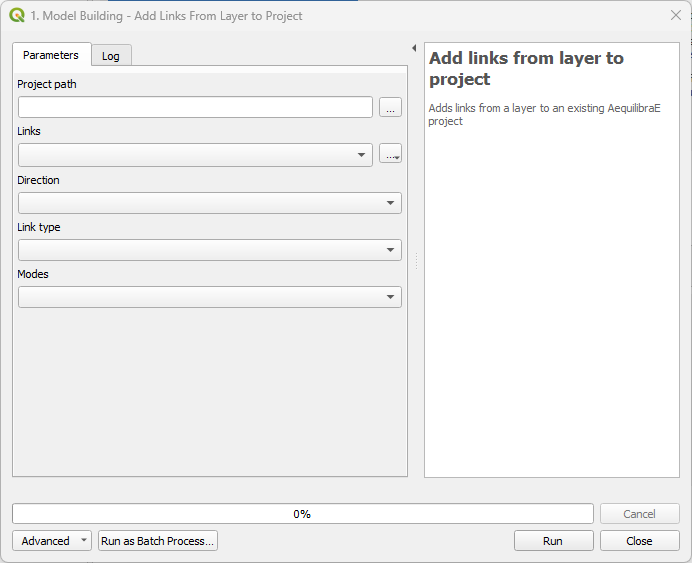

This tool allows you to add links from a vector layer to your existing project network. The fields usage is straightforward: in Project path, you add the project’s path in your machine, then select a vector layer that corresponds to the new links you want to add to your project, and indicate the layer fields that correspond to the link type, direction, and modes. Notice that this tool doesn’t require a node layer, nor does it require fields such as a_node or b_node, as it will use the existing numbering in the project.

Add/Renumber nodes from layer

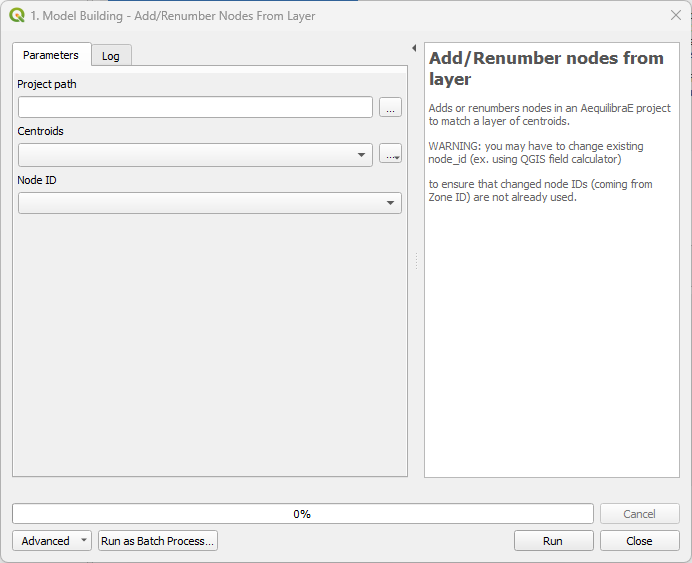

You can also add or renumber nodes in an AequilibraE project to match a layer of centroids. Just select or import the centroids layer, specify the node ID you want to match, and the output folder.

Create project from link layer

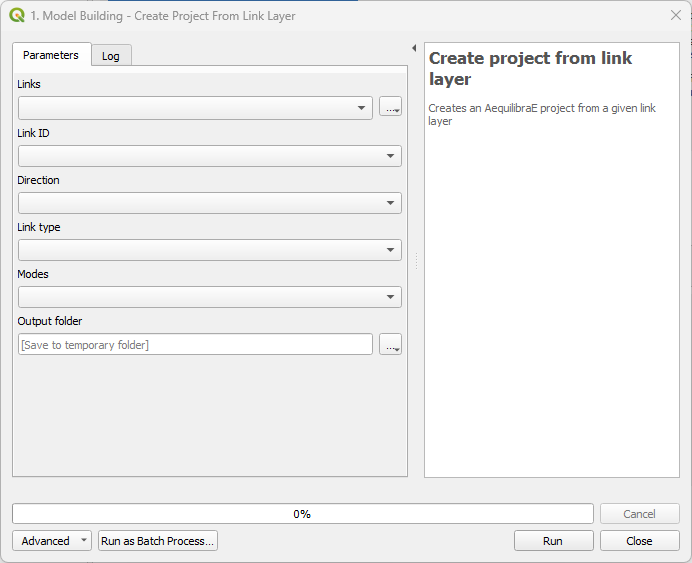

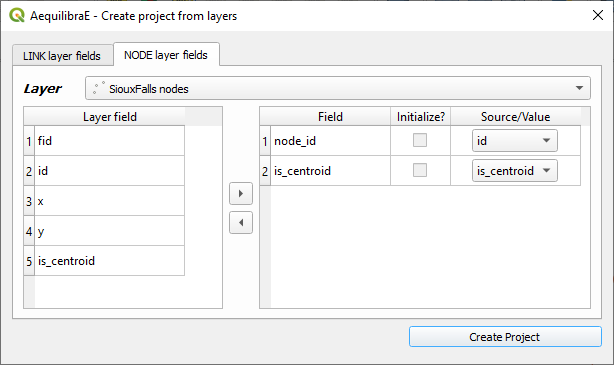

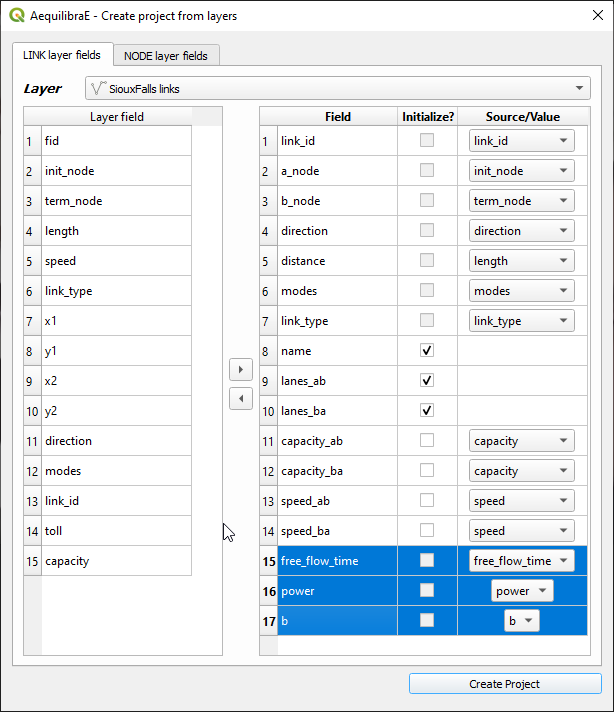

Create project from link layer is similar to the widget menu Create project from layers, and allows you to create an AequilibraE project directly from a link layer, without requiring a node layer. With a geometric layer loaded into QGIS, select it in the Links button, and add the required data in the subsequent menus. Choose the project’s name and specify the location where you want to save it on your machine.

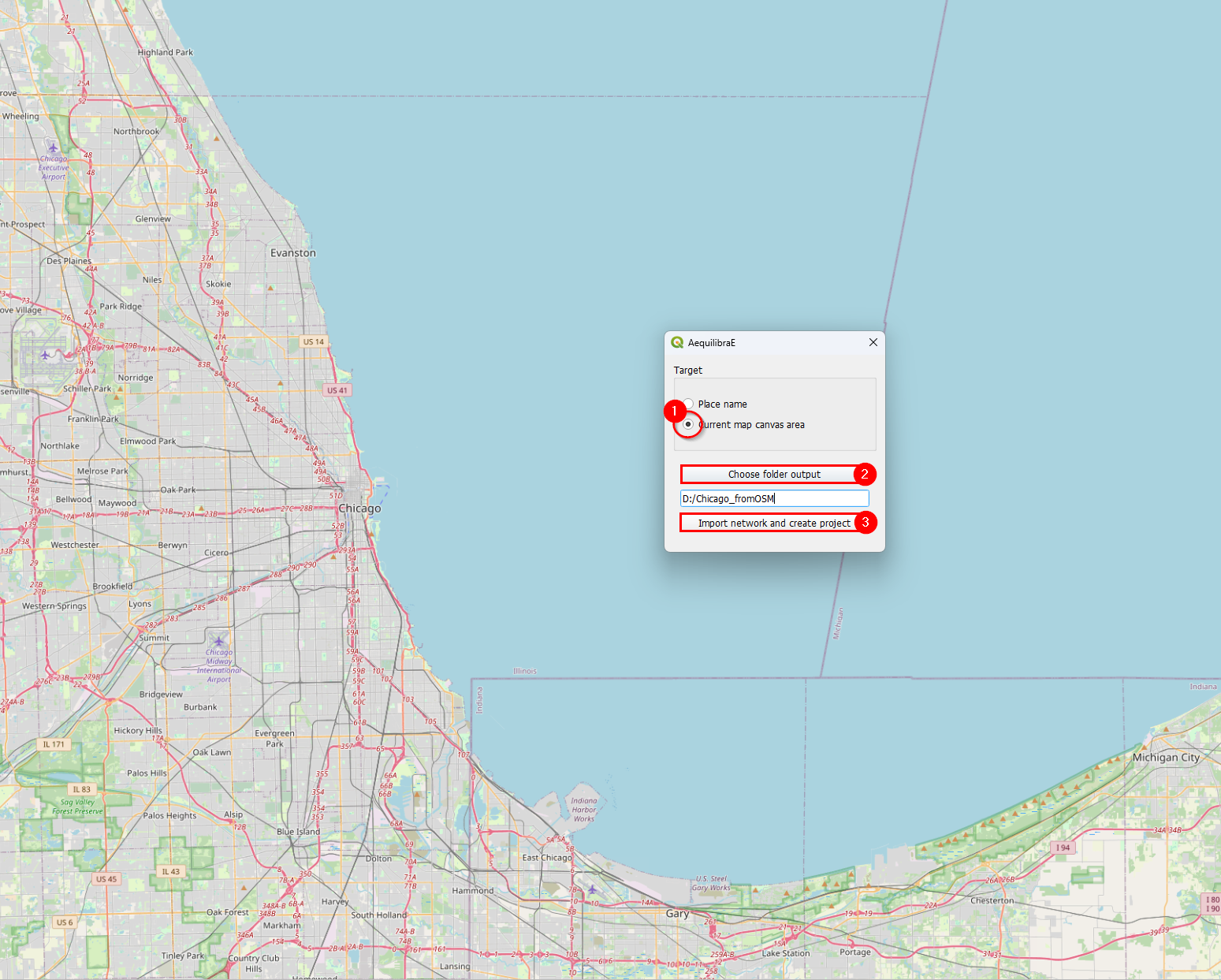

Create project from OSM

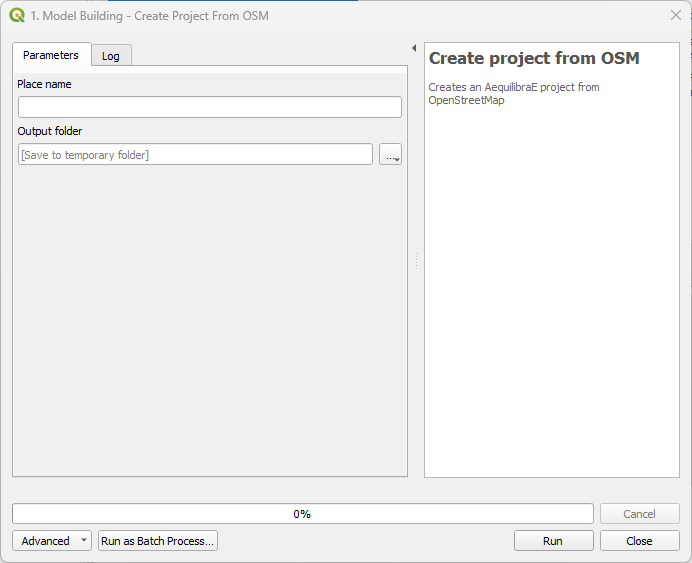

This tool is similar to the homonymous widget menu Create project from OSM, and allows you to create an AequilibraE project only specifying the place name and the folder path and name you want to save the project.

Run procedures

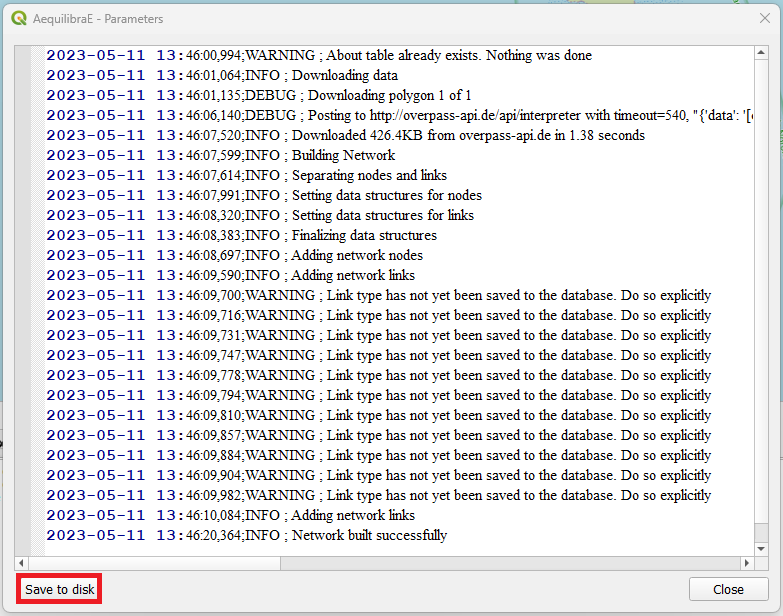

This tool is similar to the widget menu Run procedures, and allows you to use defined entry points and arguments, and run models to the model itself. To use this tool, just select one of the available functions, and once the algorithm is finished, go to the log file to check the outputs.

Important

An open AequilibraE project is required for this tool to work.

Data

Create AequilibraE Matrix from layer

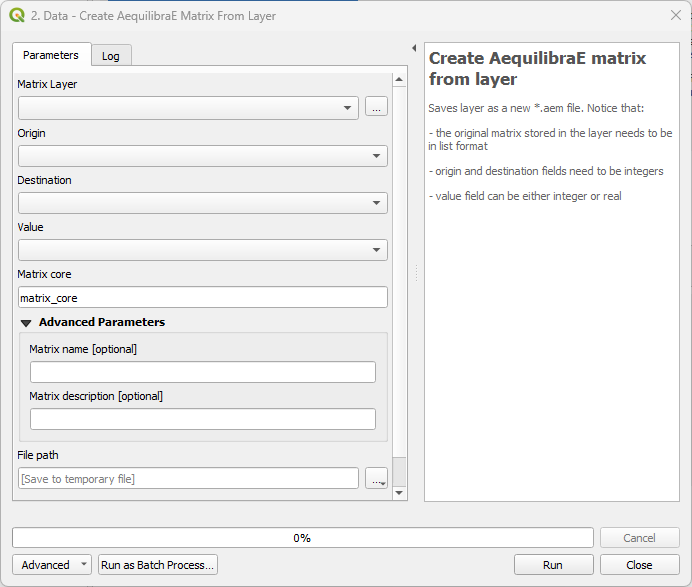

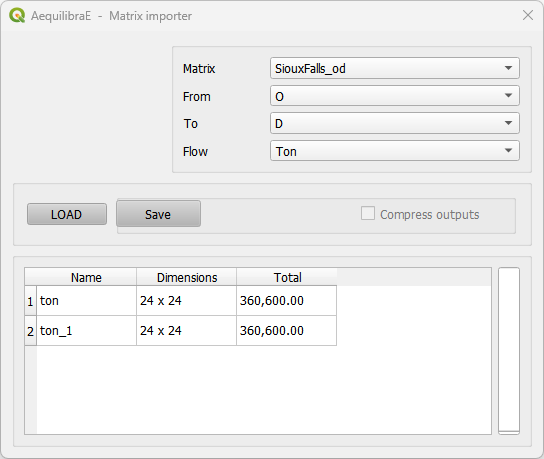

With Import matrices, you can save an open data layer directly as a *.aem file. This tool is analogous to the widget menu Importing matrices to project, but it does not require an open AequilibraE project to work. To use the tool, you must have an open layer loaded in QGIS, and the menus are the ones presented in the figure below.

The upper fields are mandatory and are responsible for selecting the layer, indicating which columns correspond to the origin, destination, and flow, creating a core name for your matrix, and specifying the output file name and path. In the Advanced Parameters, you can add extra information about your AequilibraE matrix using the fields Matrix name and Matrix description.

Export matrices

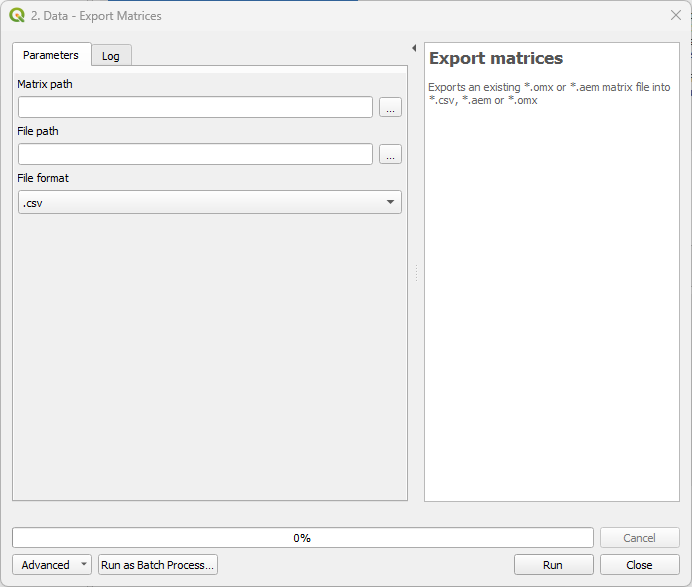

The Export matrices tool is analogous to the Export button in the matrix viewer (see: this figure for more details). Its usage is straightforward: select the matrix you want to export, specify the path on your machine to store the file, and select its output format. Only *.aem and *.omx files can be used as input, and the output format can be either one of *.aem, *.omx, or *.csv.

Matrix calculator

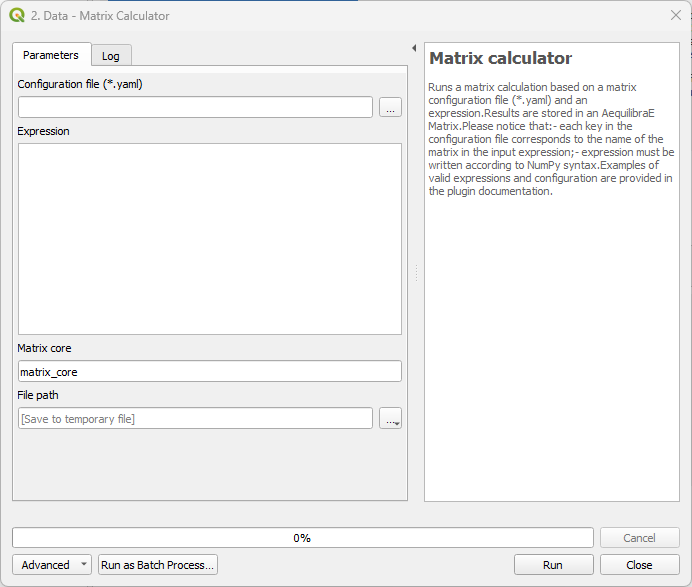

Under the hood, this tool performs several matrix calculations using NumPy. Its output is an AequilibraE matrix stored in the file path you provide. Notice that not all matrices operations available in NumPy are also available here. We currently handle the following operations.

• +, -, *, /

• min, max, abs

• ln, exp, power

• null_diag, T

To be more effective in your calculation, please use the brackets to separate the operations in the desired order of execution.

The following code blocks present, respectively, examples of a matrix input configuration for the YAML file and an expression that can be used for calculation.

Matrix configuration

# For each matrix used for calculation
- matrix_name1:
    matrix_path: path to file
    matrix_core: specifiy the core name

Expression

(matrix_name1 - matrix_name2).T

Save matrix from layer in existing file

This tools allows you to export the data from an open layer to an existing *.omx file.

Important

Currently, we cannot add new cores to an existing AequilibraE matrix. For this reason the only output file format available is *.omx.

Trip length distribution

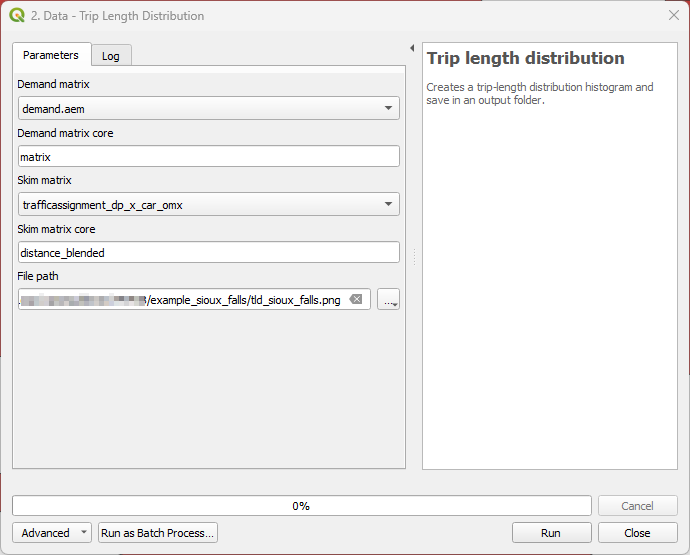

This tool generates a Trip Length Distribution (TLD) plot for a pair of demand and skim matrices and their selected cores.

Important

An open AequilibraE project is required for this tool to work.

Paths and assignment

Traffic assignment from file

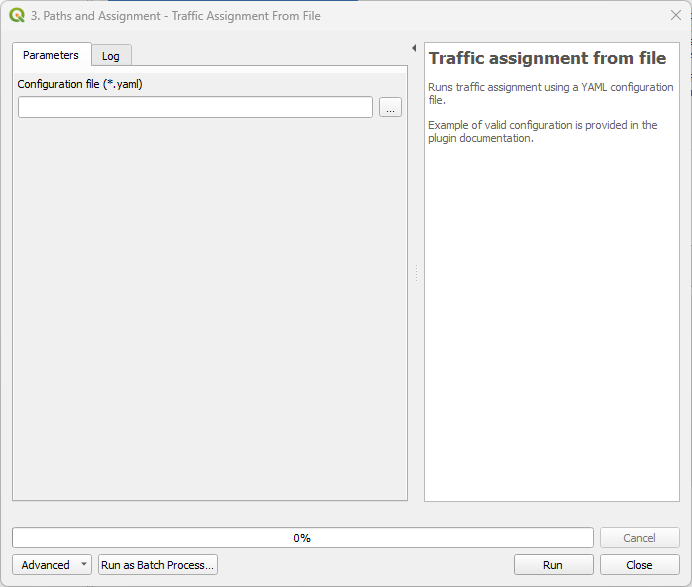

AequilibraE traffic assignment can now be performed using a YAML file that contains the model input information. The process is straightforward: create a valid YAML file with your project path, required matrices, and valid parameters, and load it into AequilibraE.

The code block below contains an example of a valid YAML configuration.

Traffic assignment configuration

project: path_to_project
result_name: test_from_yaml
traffic_classes:
    - car:
        matrix_path: path_to_project/matrices/demand.aem
        matrix_core: matrix
        network_mode: c
        pce: 1
        blocked_centroid_flows: True
        skims: free_flow_time, distance
assignment:
    algorithm: bfw
    vdf: BPR2
    alpha: 0.15
    beta: 4.0
    capacity_field: capacity
    time_field: free_flow_time
    max_iter: 10
    rgap: 0.001
select_links: # optional, name with a list of lists as [[link_id, link_direction]]
    - from_node_1: [[1, 1], [2, 1]]
    - random_nodes: [[3, 1], [5, 1]]

Public Transport

Create transit graph

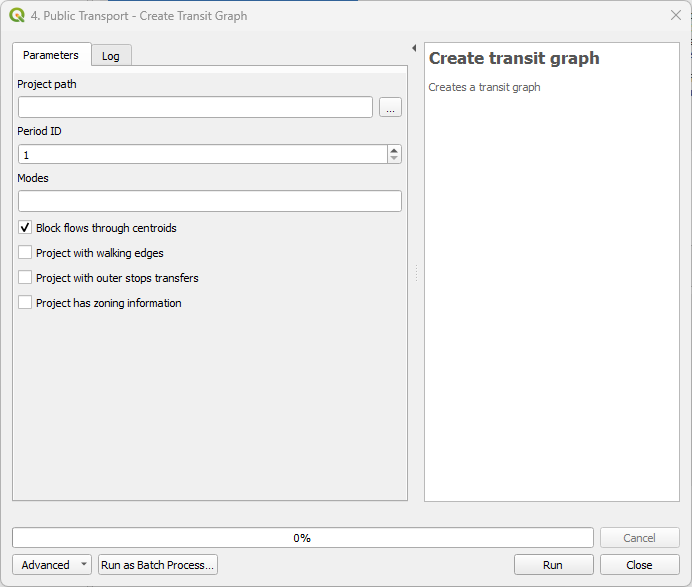

Benefiting from new AequilibraE features, this processing tool allows you to create and save a transit graph to use in the transit assignment. Figure below presents an screenshot of the create transit graph processing interface.

Notice that you will have to input data such as the project path, the desired mode, and the period ID for which you want to create your graph. Other graph configuration, such as Block flows through centroids and Project with walking edges are boolean, and can be selected as necessary. You can read more about these configuration here.

Note

Currently only a single transit graph can be saved and reloaded.

Create GTFS

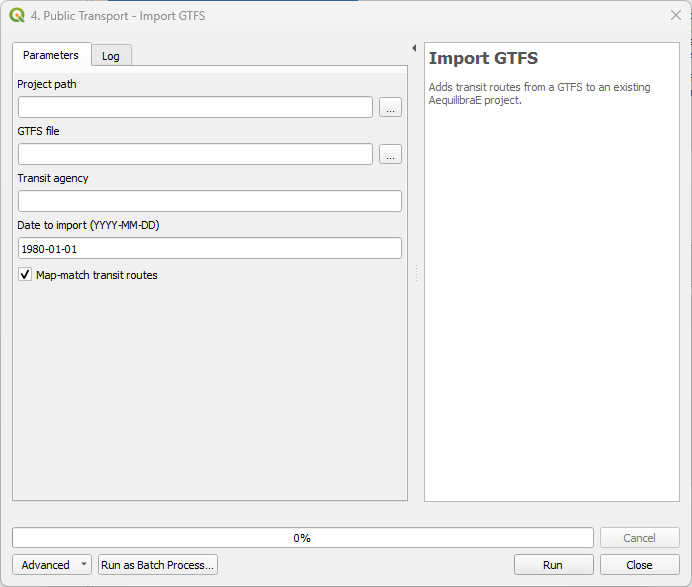

This tool allows you to import a GTFS feed to your project. Just point to the GTFS zip and project paths in your machine, select the date for which you want to import the transit routes, and if you want to map-match the routes or not. Remember that depending on the GTFS size, the map-matching procedure can be really time-consuming. Unlike the GTFS importer in the widget menu, to use this processing tool you must know which calendar date you are going to use.

Tip

Mobility Data is a non-profit organization that provides a GTFS validator tool. If you want to use QAequilibraE processing processing provider tool to import a GTFS feed, you can load your GTFS file at their validator and it will provide you useful information, including calendar date ranges.

Transit assignment from file

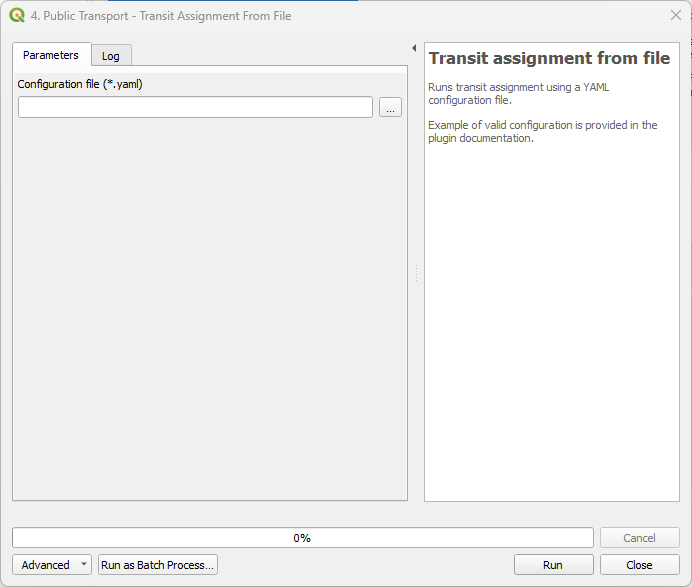

Transit assignment from file is quite similar to the traffic assignment presented above, with the remarkable differences related to the transit graph and assignment, as shown in AequilibraE. The YAML file setup includes the project location in your machine, as well as information on matrix and assignment. To use this tool, you must have a transit graph, either created by the processing tool above or using AequilibraE code.

The code block below contains an example of a valid YAML configuration.

Transit assignment configuration

project_path: path_to_project
result_name: transit_from_yaml
matrix_path: path_to_project/matrices/demand.aem
matrix_core: workers
assignment:
    time_field: trav_time
    frequency: freq
    algorithm: os
graph:
    period_id: 1
    with_outer_stop_transfers: False
    with_walking_edges: False
    blocking_centroid_flows: False
    connector_method: overlapping_regions

Network

Collapse links

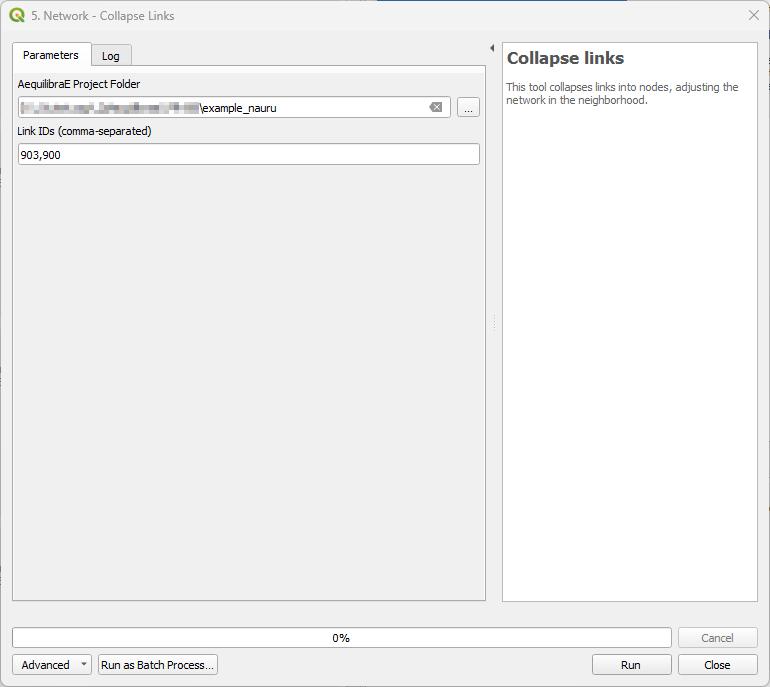

This tool allows you to collapse one or more links into nodes, adjusting the network in the neighborhood if necessary.

The input for the tool consists in a folder containing an AequilibraE project and a the link IDs of the links you want to collapse separated by a comma.

Network simplifier

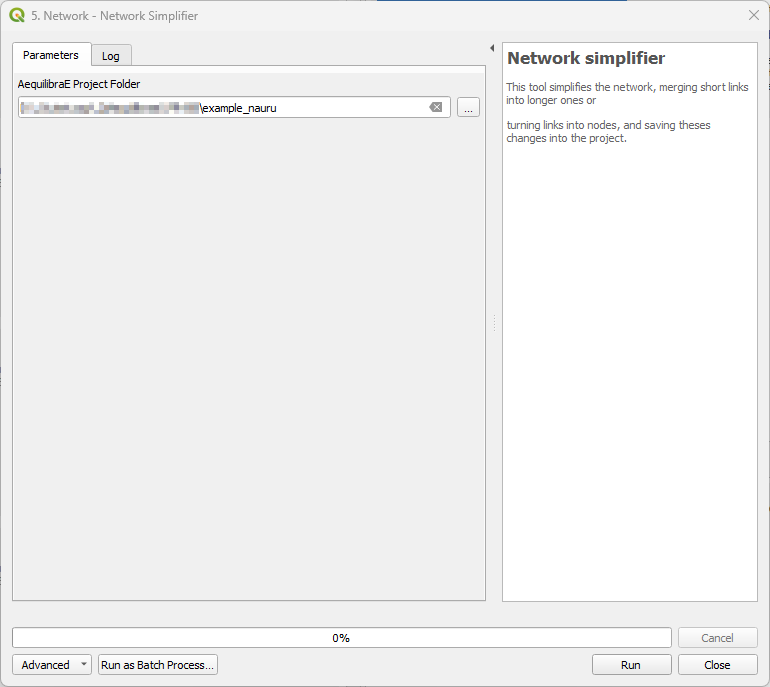

This tool allows you to simplify the network, merging short links into larger ones or turning links into nodes, and save these changes into the project.

The input for the tool consists in a folder containing an AequilibraE project.
