Parameters YAML File#
The parameter file holds the parameters information for a certain portion of the software.
Assignment#

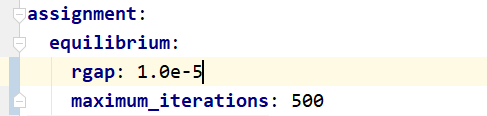

The assignment section of the parameter file is the smallest one, and it contains only the convergence criteria for assignment in terms of the maximum number of iterations and target Relative Gap.
Although these parameters are required to exist in the parameters file, one can override them during the assignment, as detailed in Convergence criteria.
Distribution#

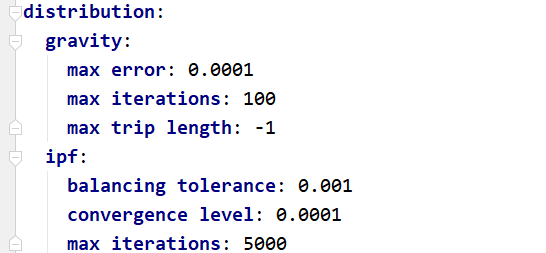

The distribution section of the parameter file is also fairly short, as it contains only the parameters for number of maximum iterations, convergence level and maximum trip length to be applied in Iterative Proportional Fitting and synthetic gravity models, as shown below.
Network#
There are four groups of parameters under the network section: links, nodes, OSM, and GMNS. The first are basically responsible for the design of the network to be created in case a new project/network is to bre created from scratch, and for now each one of these groups contains only a single group of parameters called fields.
Link Fields#

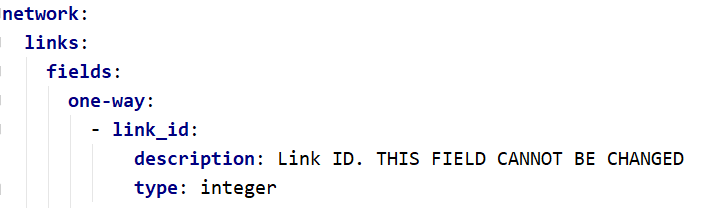

The section for link fields are divided into one-way fields and two-way fields, where the two-way fields will be created by appending _ab and _ba to the end of each field’s name.
There are 5 fields which cannot be changed, as they are mandatory fields for an AequilibraE network, and they are link_id, a_node, b_node, direction, distance and modes. The field geometry is also default, but it is not listed in the parameter file due to its distinct nature.
The list of fields required in the network are enumerated as an array under either one-way or two-way in the parameter file, and each field is a dictionary/hash that has the field’s name as the only key and under which there is a field for description and a field for data type. The data types available are those that exist within the SQLite specification . We recommend limiting yourself to the use of integer, numeric and varchar.
For the case of all non-mandatory fields, two more parameters are possible: osm_source and osm_behaviour. Those two fields provide the necessary information for importing data from Open Street Maps in case such resource is required, and they work in the following way:
osm_source: The name of the tag for which data needs to be retrieved. Common tags are highway, maxspeed and name. The import result will contain a null value for all links that do not contain a value for such tag.
Within OSM, there is the concept of tags for each link direction, such as maxspeed:forward and maxspeed:backward. However, it is not always that a two-directional link contains tag values for both directions, and it might have only a tag value for maxspeed.

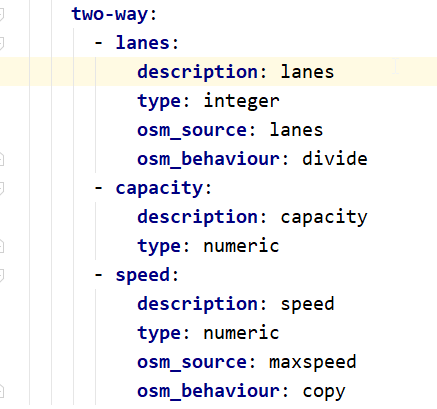

Although for maxspeed (which is the value for posted speed) we might want to copy the same value for both directions, that would not be true for parameters such as lanes, which we might want to split in half for both directions (cases with an odd number of lanes usually have forward/backward values tagged). For this reason, one can use the parameter osm_behaviour to define what to do with numeric tag values that have not been tagged for both directions. the allowed values for this parameter are copy and divide, as shown below.
The example below also shows that it is possible to mix fields that will be imported from OSM posted speed and number of lanes, and fields that need to be in the network but should not be imported from OSM, such as link capacities.
Node fields#
The specification for node fields is similar to the one for link fields, with the key difference that it does not make sense to have fields for one or two directions and that it is not possible yet to import any tagged values from OSM at the moment, and therefore the parameter osm_source would have no effect here.
Open Street Maps#
The OSM group of parameters has two specifications: modes and all_link_types.
modes contains the list of key tags we will import for each mode. Description of tags can be found on Open-Street Maps, and we recommend not changing the standard parameters unless you are exactly sure of what you are doing.
For each mode to be imported there is also a mode filter to control for non-default behaviour. For example, in some cities pedestrians a generally allowed on cycleways, but they might be forbidden in specific links, which would be tagged as pedestrian:no. This feature is stored under the key mode_filter under each mode to be imported.
There is also the possibility that not all keywords for link types for the region being imported, and therefore unknown link type tags are treated as a special case for each mode, and that is controlled by the key unknown_tags in the parameters file.
GMNS#
The GMNS group of parameters has four specifications: critical_dist, link, node, and use_definition.
critical_dist is a numeric threshold for the distance.
Under the keys links, nodes, and use_definition there are the fields equivalency and fields. They represent the equivalency between GMNS and AequilibraE data fields and data types for each field.
System#

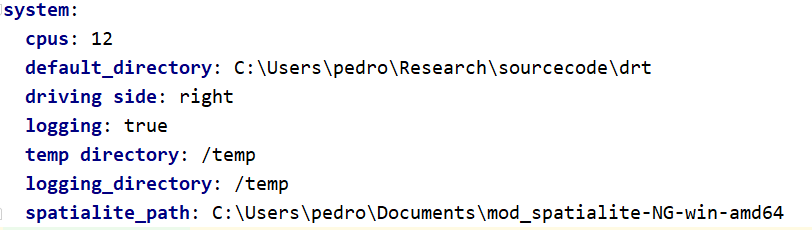

The system section of the parameters file holds information on the number of threads used in multi-threaded processes, logging and temp folders and whether we should be saving information to a log file at all, as exemplified below.
The number of CPUs have a special behaviour defined, as follows:
cpus<0 : The system will use the total number logical processors MINUS the absolute value of cpus
cpus=0 : The system will use the total number logical processors available
- cpus>0The system will use exactly cpus for computation, limited to
the total number logical processors available
A few of these parameters, however, are targeted at its QGIS plugin, which is the case of the driving side and default_directory parameters.
Open Streeet Maps#

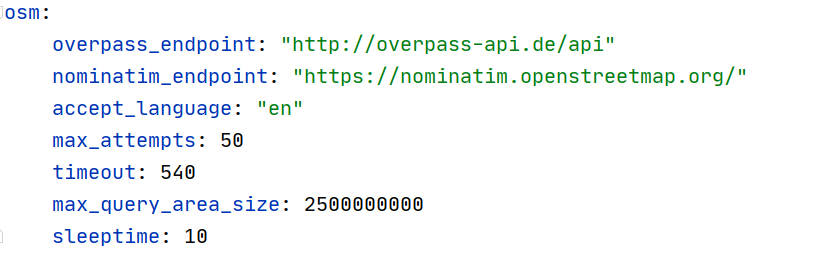

The OSM section of the parameter file is relevant only when one plans to download a substantial amount of data from an Overpass API, in which case it is recommended to deploy a local Overpass server.
The user is also welcome to change the maximum area for a single query to the Overpass API (m2) and the pause duration between successive requests sleeptime.
It is also possible to set a custom address for the Nominatim server, but its use by AequilibraE is so small that it is likely not necessary to do so.
