Trip Distribution#

On the trip distribution menu, the user can perform Iterative Proportional Fitting (IPF) with their available matrices and vectors, as well as calibrate and apply a Synthetic Gravity Model.

Unlike the other menus in QAequilibraE, all three procedures in trip distribution share some configuring stepa. We’ll go over each tab and, in the end, we’ll run a basic workflow using Sioux Falls example.

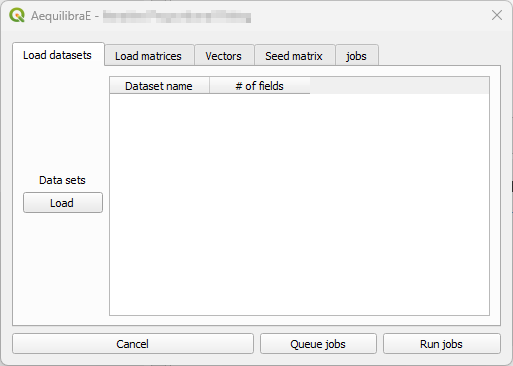

“Load datasets” is the first tab and contains a loading button and a dataset table at the right side. Currently, QAequilibraE allows import dataset data from a *.csv or *.parquet file or loading data from an open layer. This tab is configured for IPF and Apply Gravity.

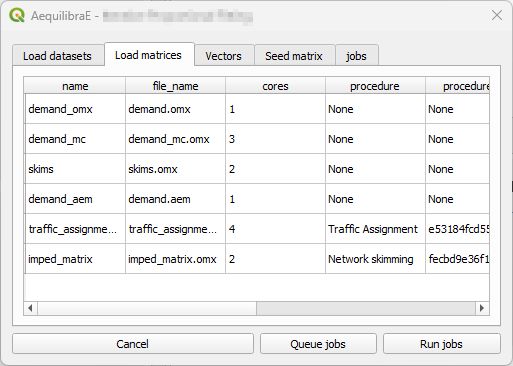

The second tab is “Load matrices”, which is configured in all processes. It consists in a table view of all matrices available in the project.

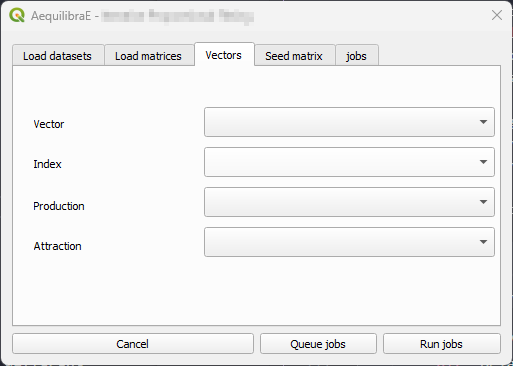

In the tab “Vector”, we indicate the vector fields for computation. If no dataset was loaded in the “Load datasets” tab, no fields are displayed here. This tab is configured for IPF and Apply Gravity procedures.

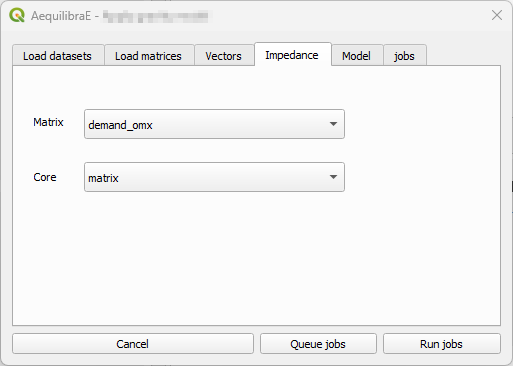

In the tab “Impedance” we select the matrix and matrix core that will be used for computation. We configure this tab at the Apply Gravity procedure.

Configure impedance tab at trip distribution

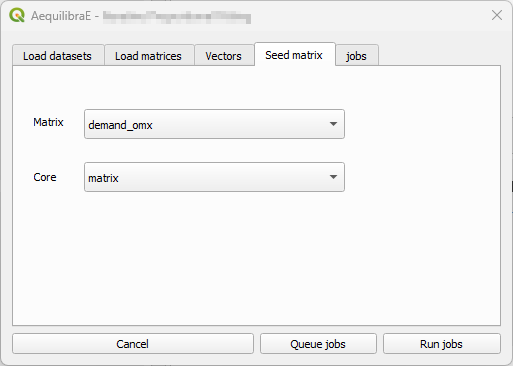

The tab “Seed matrix” (for IPF procedure) is analogous to the “Observed matrix” tab for the Calibrate Gravity procedure, and allows the user to indicate the impedance/observed matrix.

Configure seed matrix tab at trip distribution

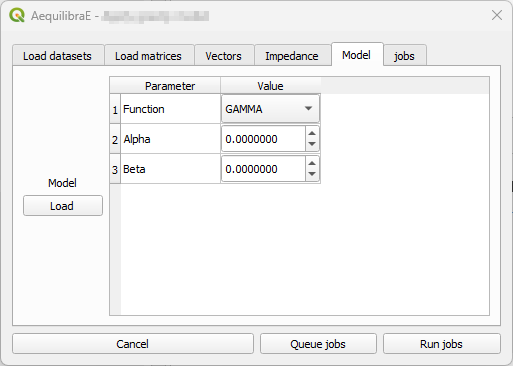

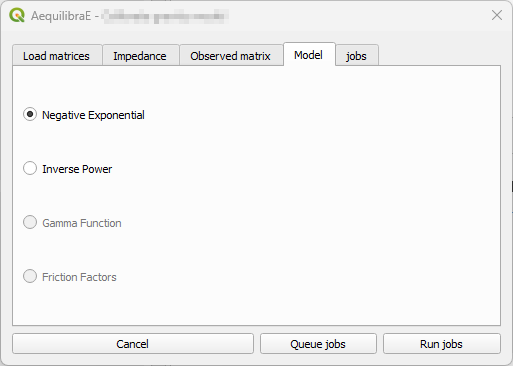

The tab “Model” exists for Calibrate and Apply Gravity procedures, however each procedure presents a different window layout. For the Calibrate Gravity, we choose the model’s deterrence function, while for the Apply Gravity, we can load the calibrated model parameters for use.

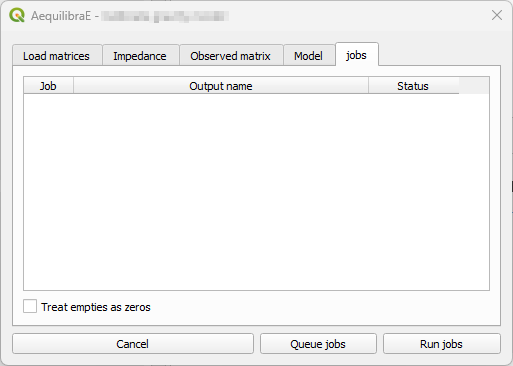

Finally, the tab “Jobs”, we can queue and/or check the jobs that are already queued and are going to be executed, and run them!

Basic workflow#

We present a full forecasting workflow using the Sioux Falls example. We start creating the skim matrices, running the assignment for the base-year, and then distributing these trips into the network. Later, we estimate a set of future demand vectors which are going to be the input of a future year assignnment.

This workflow is based on the AequilibraE Python Forecast example.

Before running the trip distribution procedures, we encourage you to run the traffic assignment procedure for the base-year.

Calibrate Gravity Model#

Now that we have the demand model and a fully converged skim, we can calibrate a synthetic gravity model.

We click on Trip distribution in the AequilibraE menu and select the Calibrate Gravity model option.

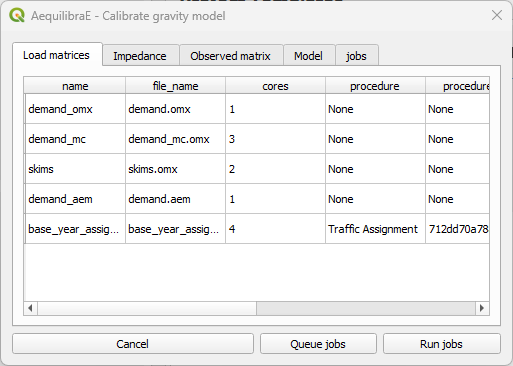

The first thing to do is to check if all matrices we need (skim and demand) are in the project folder.

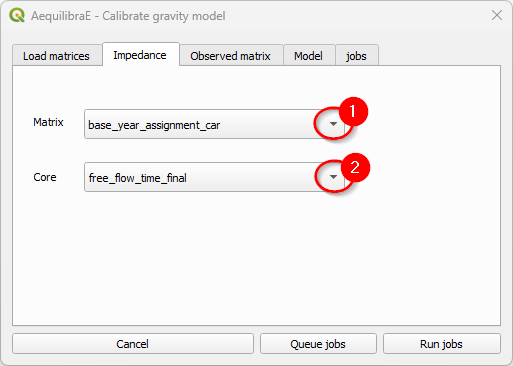

Select which matrix/matrix core is to be used as the impedance matrix.

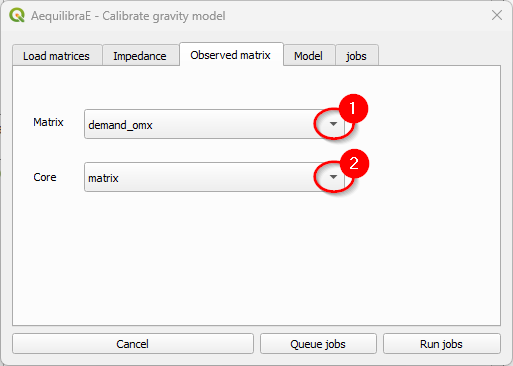

And which one corresponds to the observed (demand) matrix.

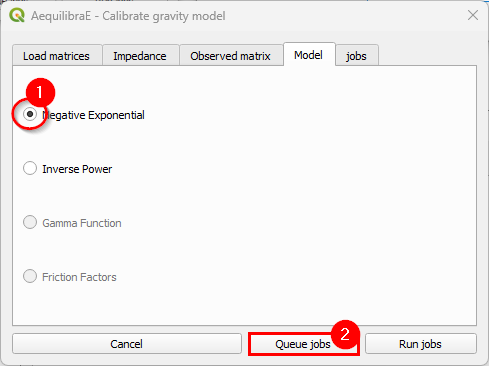

We then select which deterrence function we want to use (1) and choose a location to store the model by clicking on Queue jobs (2). A new window will open and you can choose your preferred place. Remember to pick up a place where you can easily find the model files: we’ll use them to apply the gravity model.

Calibrate Gravity - Queue negative exponential model

Let’s queue another job.

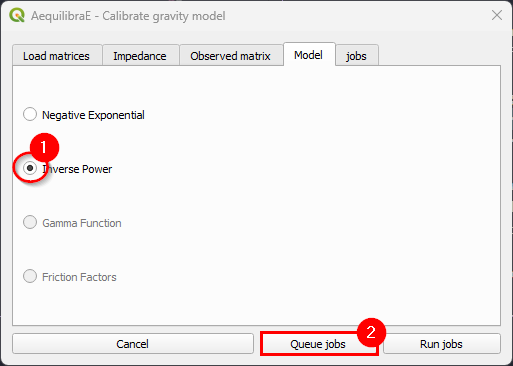

Calibrate Gravity - Queue inverse power model

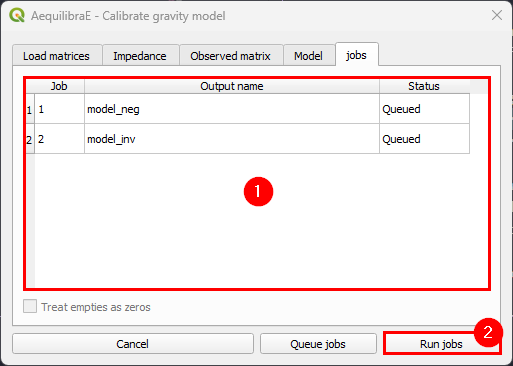

In the jobs tab, we can check all jobs we queued (1) and then run the procedures (2). You need to click once in the button to execute all of them.

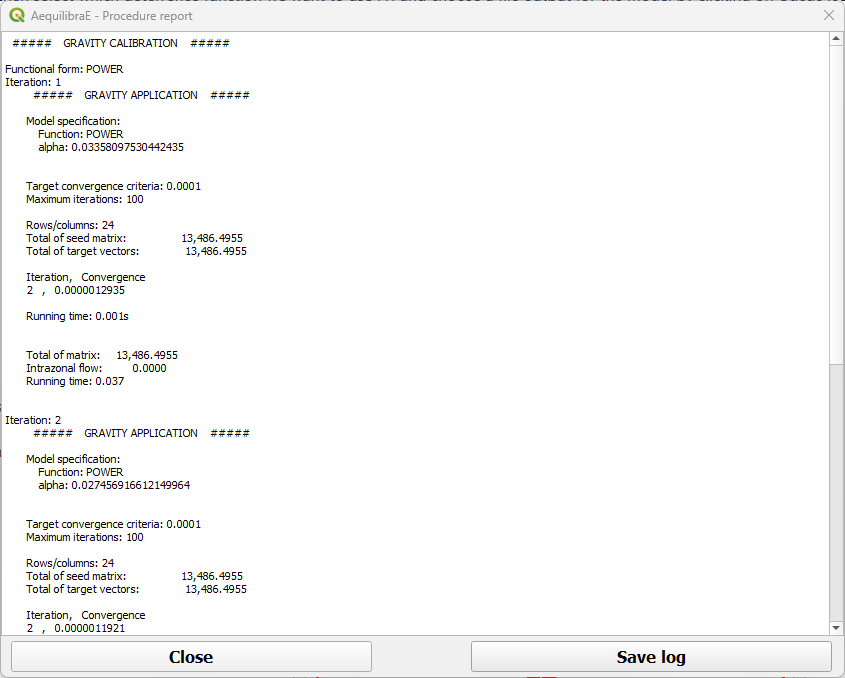

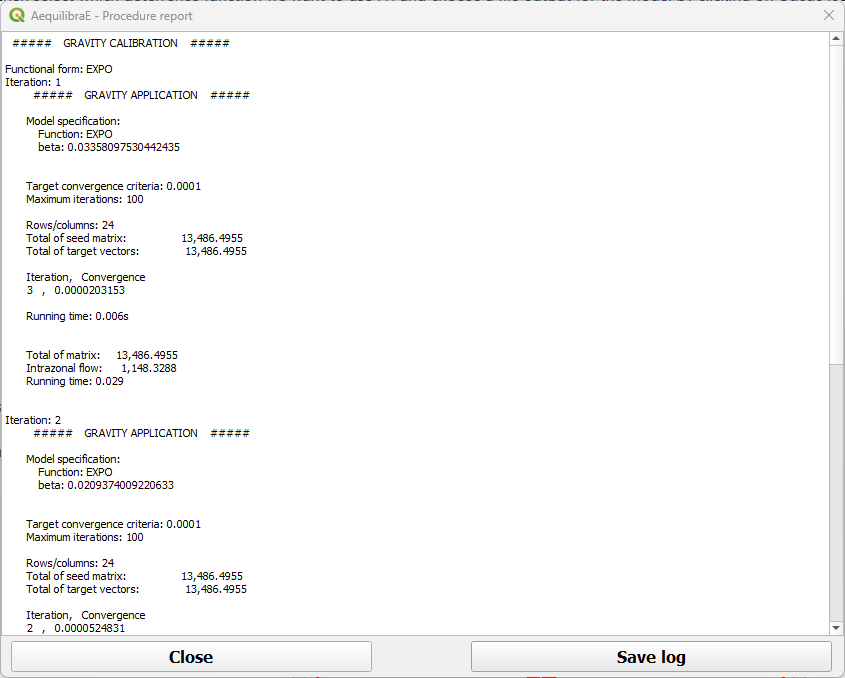

When the procedures are done, a window with each of the procedures report opens. You can inspect the outputs and save them.

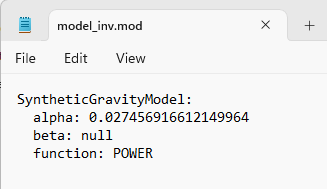

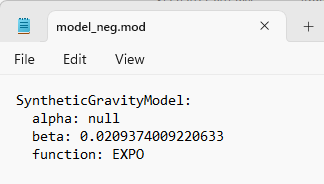

The resulting file is of type *.mod, but that is just a YAML (text file).

Iterative Proportional Fitting (IPF)#

It is possible to balance the production/attraction vectors using Iterative Proportional Fitting (IPF). Let’s click on the Trip Distribution menu and select Iterative Proportional Fitting.

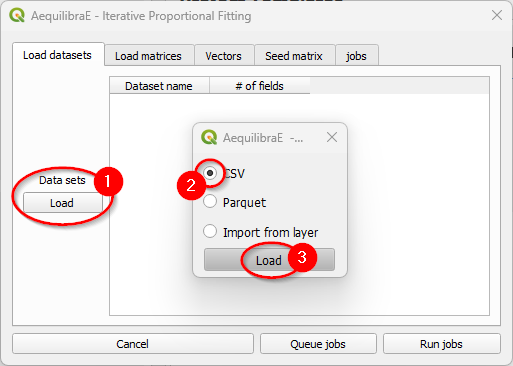

There are three different ways to load a vector’s data: loading a *.csv or *.parquet file or loading data from an open layer. Click on the Load button under “Data sets” (1). A new window opens. Loading the vector from a file is quite the same: select your preferred file format in the menu (2), and click Load (3), pointing to the location of the vector file in your machine.

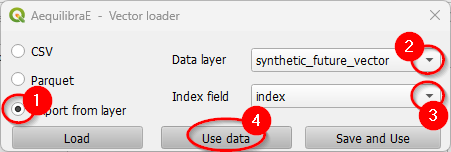

Case you are loading from an open layer, just click Import from layer, point the available data layer (1), and the name of its index column (2). Let’s choose to only Use data (3).

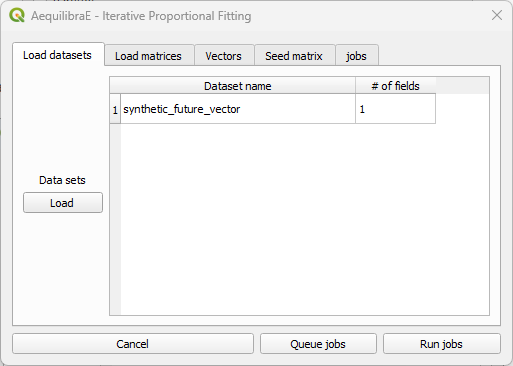

When the vector is loaded, it will appear in the Load datasets table.

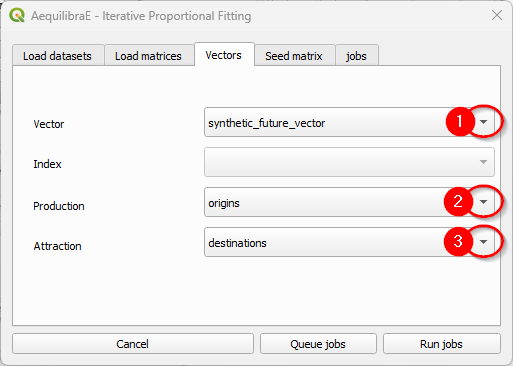

You can now select the production/attraction (origin/destination) vectors. If your data comes from a QGIS layer, you’ll notice that the Index list is deactivated because the data index was configured when loading the data.

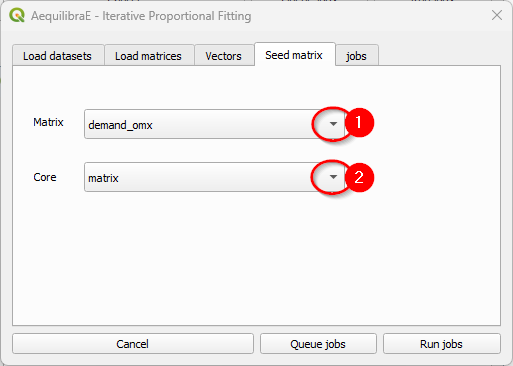

And select the seed (demand) matrix to be used.

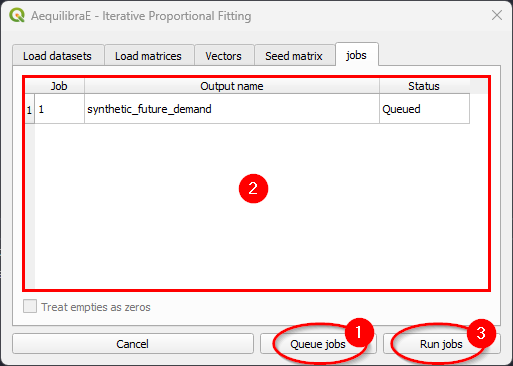

To run the procedure, queue the job (and select the where the output file will be saved). You’ll notice that a job with the output file name will appear in the jobs table with a status queued (2). Finally, press Run jobs (3).

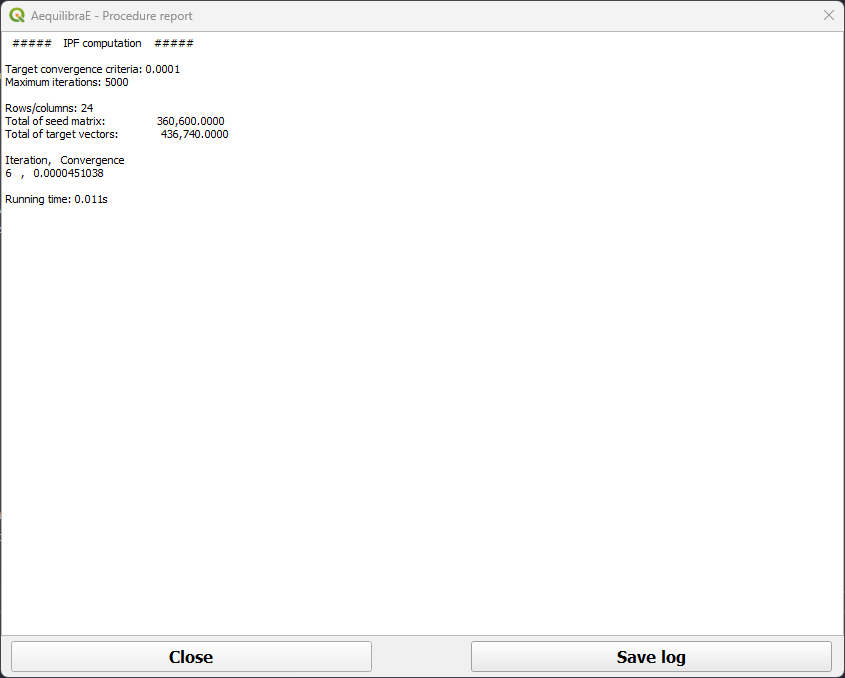

After the job is completed, a new window showing its procedure report will open. We can close it after checking the procedure report.

Important

Production and Attraction vectors must be balanced before running IPF.

If you want to use the same data as we did, you can save the following code block as a CSV file in your machine!

Synthetic future vector#

index,origins,destinations
1,5220.000000,29197.959184
2,20648.000000,41952.857143
3,2204.000000,23665.714286
4,7656.000000,12293.877551
5,10208.000000,2766.122449
6,57420.000000,31349.387755
7,25636.000000,6146.938776
8,2784.000000,5071.224490
9,10440.000000,4302.857143
10,2668.000000,8298.367347
11,18908.000000,18748.163265
12,67164.000000,58242.244898
13,10440.000000,59471.632653
14,29348.000000,12447.551020
15,26912.000000,15060.000000
16,14848.000000,4302.857143
17,14848.000000,10449.795918
18,21344.000000,15213.673469
19,8236.000000,13523.265306
20,13456.000000,31195.714286
21,19140.000000,13369.591837
22,464.000000,307.346939
23,11716.000000,9681.428571
24,35032.000000,9681.428571

Apply Gravity Model#

If one has future matrix vectors (there are some provided with the example dataset), they can either apply the Iterative Proportional Fitting (IPF) procedure available, or apply a gravity model just calibrated. Here we present the latter.

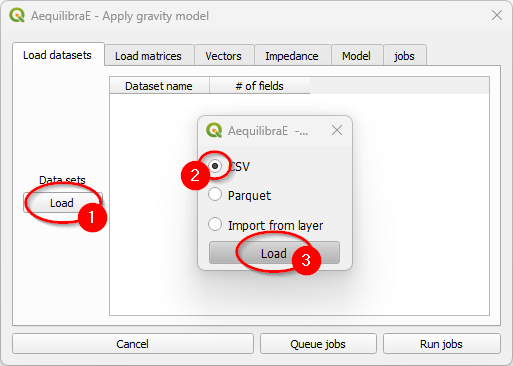

With the menu open, let’s load the dataset(s) with the production/origin and attraction/destination vectors. We can add data into the model by loading a file or using an open layer, just like the IPF procedure. Let’s click to load the dataset (1). A new window opens. Loading the vector from a file is quite the same: select your preferred file format in the menu (2), and click Load (3), pointing to the location of the vector file in your machine.

Case you are loading from an open layer, just click Import from layer, point the available data layer (1), and the name of its index column (2). Let’s choose to only Use data (3).

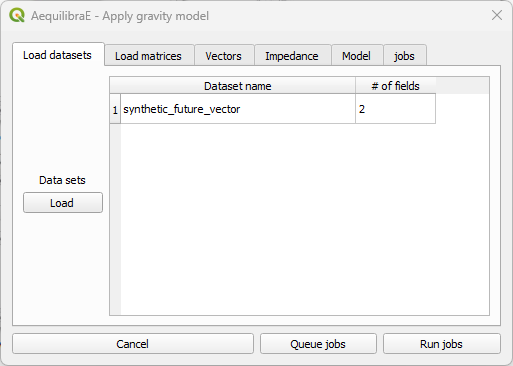

When the vector is loaded, it will appear in the Load datasets table.

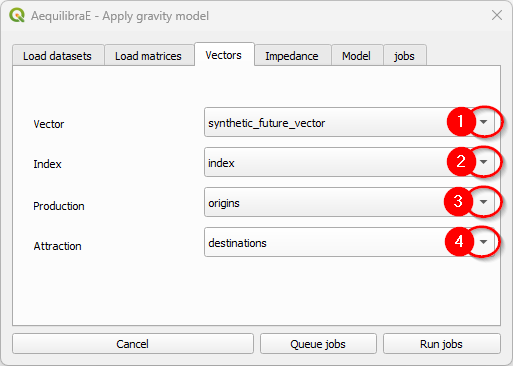

Select the production/attraction (origin/destination) vectors.

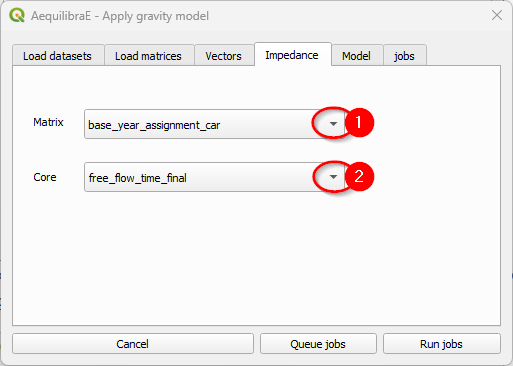

And the impedance matrix to be used. We can select one matrix core to use in computation.

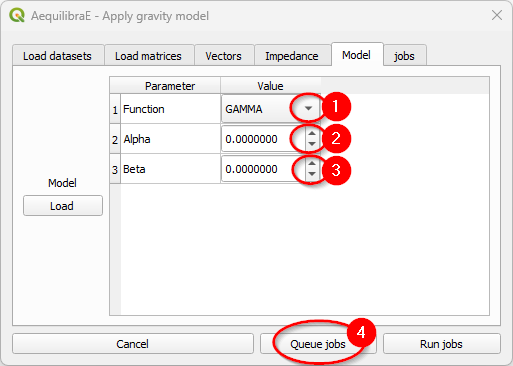

The last input is the gravity model itself, which can be done by loading a model that has been previously calibrated, or by selecting the deterrence function from the drop-down menu and typing the corresponding parameter values. To select a deterrence function, select one function among the available ones (1) and configure the values for the fields alpha and beta (steps 2 ane 3). For each function you select, queue it into the jobs (4) table.

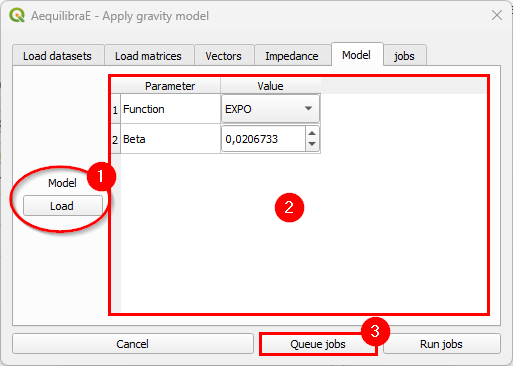

As we already have calibrated models, we’ll load its configurations. When clicking Load (1) a new window opens. Point to the path where your *.mod file is stored, and once its loaded, you’ll notice that the parameters in the table view now correspond to the model data (2). Queue the jobs by hitting the Queue jobs button (3).

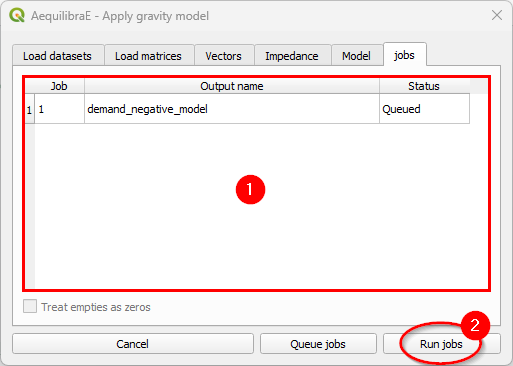

It is possible to check the jobs qeued before running the model in the tab Jobs (1). If all jobs look ok, just click on the Run jobs button (2).

We have to repeat this process of configuring, loading the calibrated models and running the jobs twice: one for each model we have!

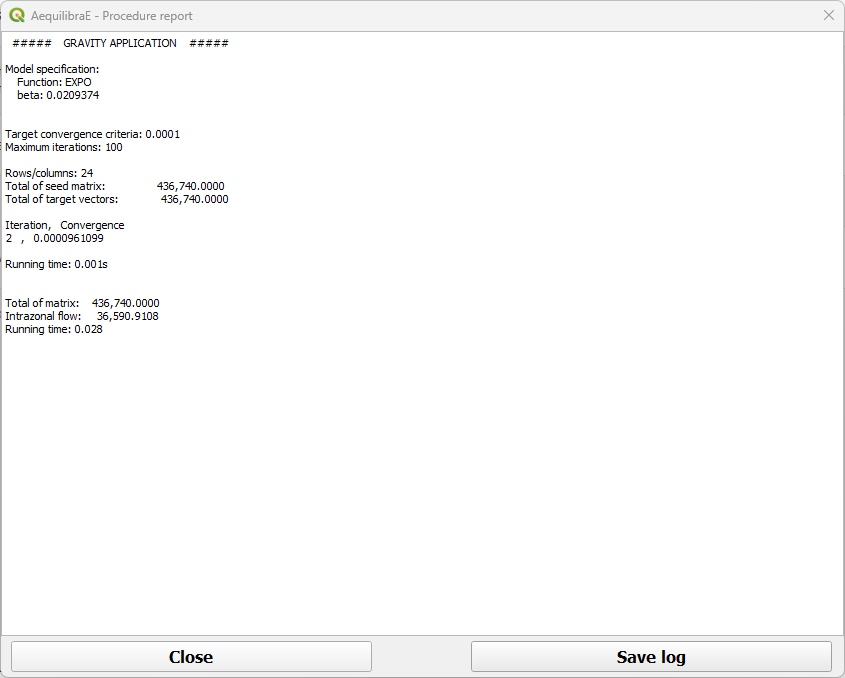

Once the process is finished, a new window with the procedure report output opens. You can check its output and close it.

The result of this future demand matrix can also be assigned, which is what we will generate the outputs being used in the scenario comparison. To do so, run a traffic assignnment workflow using the ‘demand_negative_model’ as input! Try it on!
